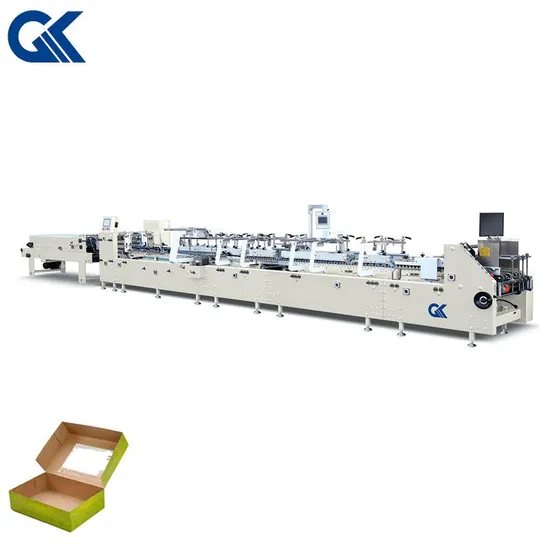

4 6 Corner Box Cardboard Paper Box Tray Folder Gluer Machine Gk-G1100

Product Description

>>>Product Introduction
Four Six Corner High Efficiency Folder Gluer Machine (GK-G650/G800/G1100) Model GK-G folding gluing machine is multifunction high speed machine,imported electronic components, adopt synchronous belt transmission and electronic continuously variable speeder ,feeding section adopt mechanic continuously variable, stable and easy to control and operate. It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and perfectly combing the requirements of auto packaging together. (in case of any special function required, we can design according to the customer's intention.)
(I) GS Series Folding and Gluing Machine Features:
1. The main drive adopts ribbed v-belt featuring stable running and precised transmission.
2. Using servo motor drive for paper feeding to accurately adjust the feeding speed and adjust the density of the carton.
3. Using T-screw for the adjustment of all guide plates (electronic screw is optional),adjustment can be easily and accurately.
4. Several thicker belts with the vibrating motor (suction feeding is optional) make the paper feeding continuously and smoothly.
5.The highly integrated crutch shaping structure makes the adjustment of all standard and non-standard cartons easily.
6.The electric glue spraying system is convenient to remove and clean.
7. Crutch belt is with automatic tension function.
8. With small box positioning device, the taller or shorter boxes can be shaped accurately.
9. Adopt the photoelectric counter and kicking device.
10. The servo motor combined with the reverse hook device can finish the folding action accurately.
11. The transmission part can adjust the paper receiving position by sliding the belt up and down. It adapts to all carton models.
>>>Main Technical Parameters

Model	650	800	1100
Paper material	Cardboard 210-800g, A.B.E Corrugate.
Speed max	400m/min
Inching speed	10m/min
Thickness of folded box max	12mm	20mm	20mm
Blank width	650mm	800mm	1100mm
Length*width*height	13*1.4*1.8m	16.5*1.4*1.8m	16.5*1.7*1.9m
Net weight	5T	6T	7.2T
Total power	22.5kW	25.5kW	29kW
Compressed air	6 bar	6 bar	6 bar
Air compressor capacity	10m3/h	10m3/h	10m3/h
Air tank capacity	60 L	60 L	60 L

>>>Main Boxes Samples
straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes ,special boxes and etc.

>>>The Machine Components
Feeding:
1. 5pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding continuously.
2. Variable Speeder to ensure feeding internal and stable transmission.
3. One-touch Pneumatic knife, easy for the adjustment of feeding belts
Pre-fold:
1. Double-board structure with a set of pre-folding knife. Pre-fold angle is 180°and 90°.
2. Packed with special track device.
3. Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
Bottom Lock:
1. 3-board tracking structure, upper gluer can make bottom-locked box automatic gluing and forming, can be used for the special-shaped cartons.
2. The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box. Bottom-folding speed is 50-200 pcs per min, stable and reliable.
Folding Section:
1. Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
Trombone:
1. Automatic: set distance between boxes, pressing belt speed is the same as the machine, belt removes while sensor detect it.
2. Manual: pressing belt conveys in a fixed speed and machine speed will not put any effect on it.
Transmission:
1. Equipped with feeding paper inspection device.
2. Equipped with impacting device to press the paper after accounting and make it easy to pack paper.
With counting device to count the finished boxes to match with boxes regulating, easy to count and pack.
>>>Our Exhibition
>>>Company Introduction
Gaoke Machinery, the leader of gluing and folding field.
Gaoke Machinery Co.,Ltd was established in 2006.As a professional manufacturer,we not only do manufacturing, but also do researching ,marketing and offering after sales servicerd b.We supply quality equipment,effective and convenient solutions for cardboaox and corrugated box folding industry,printing and packaging industry,We have got CE certificate in 2008.
We persist on business philosophy of technology and innovation,casting quality and pursuit of excellence.
Since the establishment of the company,we pay attention to developing and bringing in professional technicians and setting up a young elite team, our products are quite popular in southeast Asia and Europe because of high quality.

Ten years witnesses our growth.Now our company space covers more than 10000 square meters.There are more than 8 employees.Two of them have master degree, ten of them have bachelor degree, more than 20 received professional training.
>>>Shipping &Packing
Normally, we use wooden pallets and cases, we use fumigation/ free fumigation wooden pallets and cases for some European countries,
also some are according to the customer's requirement.
>>>RFQ
1.Q:What is the machine warranty?
A:one year.
2.Q:Does your machine with CE certificate?
A:Yes.
3.Q:What is the production time while placing order?
A:About 30 days
4.Q:What is the delivery time?
A:Within 30 days after get the payment.
5.Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6.Q:Does the packing strong?
A:Yes, of course! All of our export packing is with strong wooden pallets, all are confirmed to export packing standard.
7.Q:How about after-sales service process?
A:When your machine has problem, contact your sales and we will solve your problem soon as possible.
8.Q:Are you manufacturer?
A:Yes, we are manufacturer with 10-year experience and profession.
9.Q:Do you have stock product to sell?
A:Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need custom one for you, and your order will be highly attention to manufacture.
10.Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .
11.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C. We are professional manufacturer since 2005. We believe our products will provide you with great business benefits and advantage.
Our faith:
1) Society's Avail First
2) Client's Avail First
3) Employee's Avail First
4) Enterprise's Avail Second
If you have any inquiry, please don't hesitate to contact us. We will reply to you at the first time as we can.

---
