Product Description
Product Description

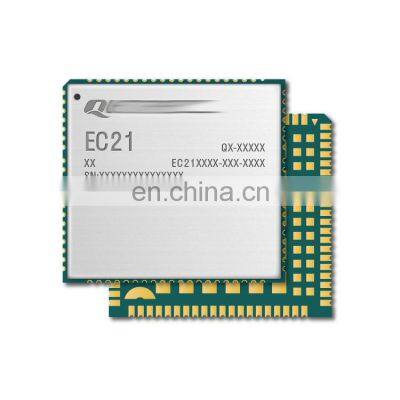

DescriptionLTE EC21 seriesLTE Cat 1 module32.0mm × 29.0mm × 2.4mmLCC form factorMax. downlink 10Mbps / uplink 5MbpsExtended temperature range of -40°C to +85°COverviewThe EC21 is a series of LTE Cat 1 IoT modules in an LCC form factor measuring 32.0mm x 29.0mm x 2.4mm, which meets the 3GPP Release 11 standard. The EC21 is compatible with Quectel’s UMTS/HSPA+ UC200T modules and multi-mode LTE Standard EC25, EC20 R2.1, EG25-G and EG21-G modules. It is therefore backward-compatible with existing EDGE and GSM/GPRS networks, enabling easy migration between LTE and 2G or 3G. The series consists of ten variants to meet various geographical demands, which can be compared via the table above.The EC21 provides cost-effective, low-power LTE connectivity, delivering maximum downlink rates of 10Mbps and uplink rates of 5Mbps under LTE, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. This makes the series ideal for IoT applications which are not reliant on high-speed connectivity but do require the longevity and reliability of LTE networks.The EC21 supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS), and the integrated GNSS greatly simplifies product design, and provides quicker, more accurate and dependable positioning. A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, Android and eCall) allow the module to serve a wide range of IoT applications including smart metering, wearable devices, environmental monitoring, asset tracking, fleet management, and security systems.Key FeaturesCompatible with UMTS/HSPA+ UC200T module and multi-mode LTE Standard EC25, EC20 R2.1, EG25-G and EG21-G modulesSupports Qualcomm® IZat™ location technology Gen8C LiteSupports DFOTASupports DTMFSupports MIMOMulti-constellation GNSS receiverEC21-EEC21-EUEC21-ECEC21-AEC21-KLREGION / OPERATOREMEA/Korea/ThailandEMEA/Korea/ThailandEMEA/Korea/ThailandJapanKoreaFREQUENCY BANDSLTE-FDDB1/B3/B5/B7/B8/B20B1/B2①/B3/B4/B5/B7/B8/B28B1/B3/B5/B7/B28B1/B3/B5/B8/B28B1/B3/B8/B18/B19/B26LTE TDDB40----B1/B2/B5/B8B1/B5B1/B5/B8----B2/B3/B5/B8--10Mbps (DL)/ 5Mbps (UL)10Mbps (DL)/ 5Mbps (UL)10Mbps (DL)/ 5Mbps (UL)10Mbps (DL)/ 5Mbps (UL)10Mbps (DL)/ 5Mbps (UL)8.96Mbps (DL)/ 3.1Mbps (UL)8.96Mbps (DL)/ 3.1Mbps (UL)8.96Mbps (DL)/ 3.1Mbps (UL)8.96Mbps (DL)/ 3.1Mbps (UL)8.96Mbps (DL)/ 3.1Mbps (UL)DC-HSDPA42Mbps (DL)42Mbps (DL)42Mbps (DL)42Mbps (DL)42Mbps (DL)HSUPA5.76Mbps (UL)5.76Mbps (UL)5.76Mbps (UL)5.76Mbps (UL)5.76Mbps (UL)WCDMA384Kbps (DL)/ 384Kbps (UL)384Kbps (DL)/ 384Kbps (UL)384Kbps (DL)/ 384Kbps (UL)384Kbps (DL)/ 384Kbps (UL)384Kbps (DL)/ 384Kbps (UL)EDGE296Kbps (DL)/ 236.8Kbps (UL)296Kbps (DL)/ 236.8Kbps (UL)296Kbps (DL)/ 236.8Kbps (UL)296Kbps (DL)/ 236.8Kbps (UL)296Kbps (DL)/ 236.8Kbps (UL)GPRSWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
>>
