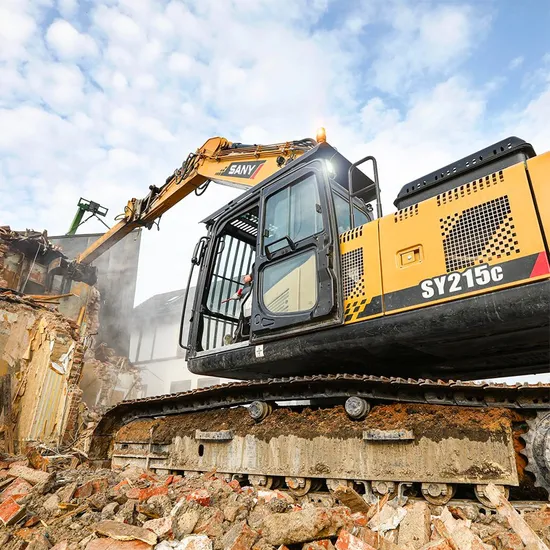

New Sy215c Sany Digger Machinery Machine Medium Mining Crawler Excavator Road Construction

Product Description

SY215 is a new-generation grade-21 super excavator for earthwork produced by SANY Heavy Machinery.
It is designed for earthwork conditions and takes stonework into consideration. It targets to improve investment return of the customer. As compared with the competitor, it features "super excellent performance, super strong adaptability, super long life and super low maintenance cost" etc.
High Efficiency & Low Consumption
1. Working Efficiency Up by 8%
2. Fuel Consumption Down by 10%
3. Digging Force Up by 9.5%
High Reliability
1. Powerful Customized Machine
The Mitsubishi engine with rate power of 128/2000 kW/rpm, 6-cylinder, 4-stroke direct-injection turbocharger, and 5.86L displacement is customized for SANY excavators, meeting your expectation on engine stability.
2. Strong Structural Components
Safety and Comfort
1. Falling Object Protection Structure
2. Large Rear View Mirror & Alternate Exit
3. Large Low Noise Cab
New-type engine system

Specifications		Main performance
Total weight	21900kg	Emission standard	Tier 3
Engine	Isuzu	Digging force of bucket	138kN/148kN
Type	4-cylinder	Digging force of arm	103kN/107kN
Rated power	128/2000 kW/rpm	Arm length	2.92m
Maximum torque	580N·m/1600rpm	Boom length	5.7m
Bucket capacity	0.9m³	Traveling speed(high/low)	5.4/3.3(km/h)
Displacement	4.9L	Ground pressure	47.4/45.9kPa
Capacity of oil and coolant		Traveling section
Fuel tank	340L	Number of track shoes	47
Hydraulic oil	239L	Carrier wheel on each side	2
Coolant	29L	Thrust wheel on each side	8
Final drive	2*5.0L	Standard track	600mm
Engine oil	22L

---
