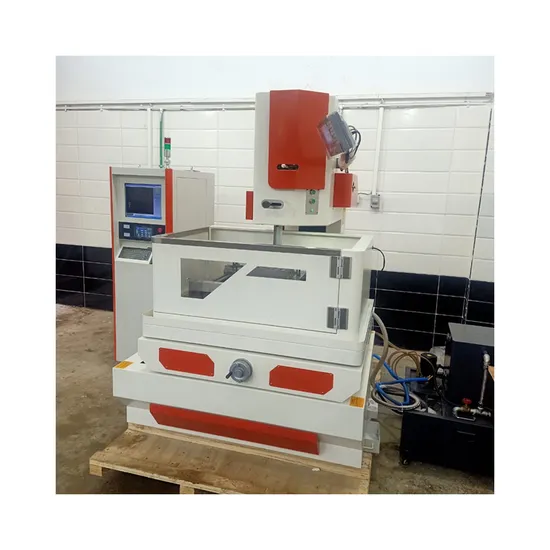

CNC EDM Electric Wire Cutting Machine Factory Supply

Product Description

Medium-speed Wire cut Electrical Discharge Machining (MS-WEDM for short) belongs to the category of reciprocating high-speed wire-moving wire cut electric discharge machine, which achieves the multiple cutting functions on high-speed reciprocating wire-moving wire cut electric discharge machine and is commonly known as "medium wire-moving cutting". Wenjie MS-WEDM has a good taste, high quality, super stability and low price!
Features
1. It has good stability, and the workbench has a strong anti-interference capability to maintain a stable running speed after the accurate calculate of load and inertia;
2. The servo/stepping motor and ball screw are driven by means of direct connection, which has a simple structure, reduces assembly errors, has a high response speed and good dynamic and static characteristics.

Product Parameters

Model	Unit	PD-4300A	PD-5400A
Table travel (X×Y) (mm)	mm	400x320	500x400
Table size (mm)	mm	750x570	900x680
Max. workpiece weight (kg)	Kg	300	400
Max. Z axis travel (mm)	mm	300	300
Max. cutting angle	mm	6°/80mm
Best surface size error (mm)	mm	≤0.015 (Φ10)
Best Roughness (μm)	μm	Ra≤1.0
Machine weight (kg)	Kg	2100	2400
Machine size (mm)	mm	1850x1160x2000	1930x1450x2000

Detailed Photos

Our service
Warranty Period: 1 year
During warranty period, we can provide free parts and components that are not damaged due to improper operation (consumables are excluded). Out of warranty period, we will supply our best service to you as usual, if you have any question.

1. Offer technical support online service.

2. Technical files service & on-site training service provided.

3. Offer machine operation video.

4. Spare parts replacement and repair service provided.

5. All questions will be replied within 12 hours.

FAQ
Q: Are you a manufacturer or trading company?
A: We are the professional manufacturer of cnc wire cut edm machine, which have been in the industry for 20 years more. All the casting and metal plates are made by ourselves.
Q: What information will you need to make the proposal?
A: Worktable size, worktable travel, surface finish, and your special requirement etc.
Q: Can you provide training and maintenance?
A: Yes. In order to make your production more efficient, before the delivery, you can send someone to my company for professional operation training on free.
Q:How can I get technical support if I buy your machine?
A:We can offer detailed instructional videos, even if novices can operate by watching the videos. Do not worry about it!
Q:How about your after-sales service?
A:Any problem, we can provide with solutions quickly by video calling. During the warranty period, replacement of damaged parts are free. After warranty period, we will offer replacement at cost only. Consumables are excluded.

---
