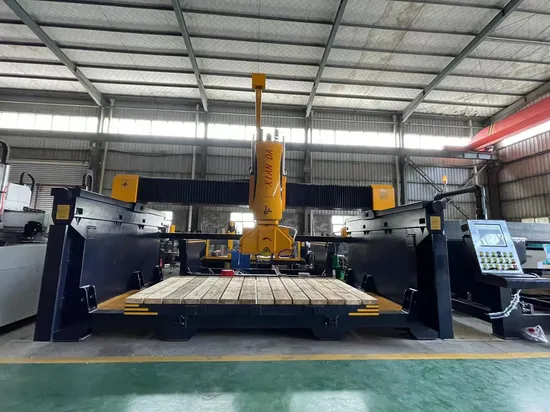

Xianda Machinery 5 Axis Bridge Cutting Machine with Permanent Magnetic Synchronous Motor

Product Description

Xianda Machinery 5 Axis Bridge Cutting Machine with Permanent Magnetic Synchronous Motor
Product Description
5 Axis Bridge cutting machine adopt 5 Axis linkage CNC System Control,Bus-based absolute value servo (with memory function for power off).high-precision linear guide rail,ball screw transmission.oil-immersed track structure.with multi-function, high precision,strong stability and other advantages.Its processing functions include arbitrary-shaped lines,fan-shaped plates, wash basin and special-shaped edge profiling,etc.The equipment has multiple processing functions,wide application, small space, and simple operation.It is a great equipment for stone processing.
Technical Parameter

Parameter	Unit	Create 5
Blade diameter	mm	350-600
Max processing size	mm	3400*2000*180
Worktable size	mm	3400*2000
Table tilting degree	mm	3200*2000*80
Head rotating degree	°	0-85
Head tilting degree	°	0-360
Air speed	°	0-45
Repeated accuracy of positioning
Main motor power	kw	15
Outline dimension	mm	5000*3100*2600
Water consumption	m3/h	3

Xianda machinery
Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named "Wuli Bridge" and next to biggest stone market in the world- Shuitou.
With more than 34 years' experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep"Top Technology and Superior Quality"as our standard for all machines and got CE, ISO Quality Gold Award , etc.
"China Recommend Building Manufacture Enterprise", "3A Enterprise Credit Evalution" , etc for company.And we are always the sponsor for education as our CEO Mr Roy is enthusiastic about the public welfare establishments.
Xianda always keep"Creat the highest value of your stone"as purpose,your visiting and contacting is always welcomed.
Exhibition
Our Product
Certification
Our Service * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.Key words: stone cutting machine, wire saw machine, stone profiling.
Manufacturer Profiles
We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.
We are a company which is specially for producing stone machines for exporting. Quality ControlWe have our own experienced QC.
Our machine will be strictly inspected.
We will provide a Testing Video for each machines before shipping out if required by customer. Delivery timeBased on order quantity, normally three weeks against payment. WarrantyAll the machines have one year warranty. After ServicesOur marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.
FAQ
Q:How to place order to your company?
A: 1.Inquiry-Professional quotation
2.Confirm the price,lead time, logo, payment term etc.
3.Xianda sales send the Proforma Invoice with seal.
4.Customers make the payment as a deposit and send us Bank receipt
5.Sales confirm the receipt of down payment After approval, we will arrange the production & inform the estimated time
Q:How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q:Are you Manufacture Factory?
A: Yes that we are the stone machinery factory for over 30 years
Q:What about the warranty time of the machine?
A:We provide one year for parts warranty service
Q:What can this machine be used to?
A:This machine is designed to cut lines on stone like columns lines ,big arc shaped slabs and special stone shapes.

---
