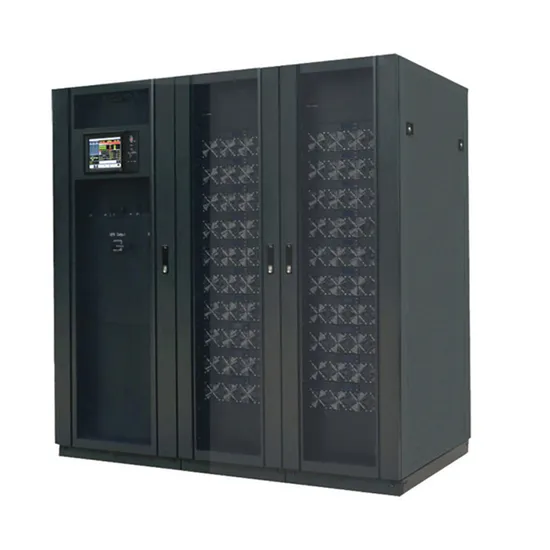

Data Center Room Three Phase High Frequency 600kVA Modular UPS

Product Description

For Data Center IT Room Three Phase High Frequency Hot-Swappable 600KVA Modular UPS
Features:
*Modular hot-swap design
*Independent charger
*Battery cold start
*Integrated IGBT
Technical specification:

MODEL			92M200/20X	92M120/20X	92M60/20X
System Capacity			200kVA	120kVA	60kVA
Power Module Capacity			20kVA/18kW
Input	Dual Input		Optional
	Phase		3 Phase+Neutral+Ground, 380V/400V/415V(line-line)
	Input Voltage Range		304~478Vac (line-line),full load; 228V~304Vac (line-line),load decreases linearly according to the min phase voltage
	Rate Frequency		50/60Hz
Bypass	Input Frequency Range		40Hz~70Hz
	Input PF		>0.99
	Input THDi		<3% (100% Linear load)
	Rate Voltage		380/400/415Vac (line-line)
	Rate Frequency		50/60Hz
Output	Input Voltage Range		Settable, -40%~+25%
	Bypass Frequency Range		Settable, ±1Hz, ±3Hz, ±5Hz
	Bypass Overload		125% long term operation; 130% for 1 hour ;150% for 6 mins; 1000% for 100ms
	Rate Voltage		380/400/415Vac (line-line)
	Voltage Regulation		1% for balance load; 1.5% for unbalance load
Battery	Rate Frequency		50/60Hz
	Frequency Precision		0.1%
	Output PF		0.9
	Output THDu		<1% , Linear load; <5.5%, Non-linear load
	Crest Factor		3:1
	Inverter Overload		110% for 1 hour; 125% for 10 mins ;150% for 1 min; >150% for 200 ms
	Voltage		±240Vdc
	Battery Number		40pcs (Settable: even number from 32 to 44)
	Voltage Precision		±1%
	Charge Power		up to 20% * Output active power
	Battery Cold Start		Standard
	Efficiency	AC Mode	95.0%
		ECO Mode	99.0%
		Battery Mode	95.0%
System	Display		5.7" touch screen LCD + LED + keyboard
	IP Class		IP 20
	Interface		RS232,RS485, Programmable Dry Contact
	Option		SNMP Card, Parallel kit, SPD, LBS, Dust filter
	Temperature		Operation: 0~ 40 ºC Storge: -40 ~70 ºC
	Relative Humidity		0 ~95% Non-condensing
	Altitude		<1000m. Within 1000m to 2000m, power derate 1% for every 100m rise
	Noise (1 meter)		55dB @ 50% load
	Applicable Standards		Safety: IEC/EN 62040-1 EMC: IEC/EN 62040-2 Performance: IEC/EN 62040-3
Physical	Weight (kg)	Cabinet	180	150	105
		Power module	22
	Dimension W*D*H(mm)	Cabinet	600*900*2000	600*900*1600	600*900*1100
		Power module	440*590*134

Company Profile
Why choose us?
1. 16years manufacturing experience on power inverter and UPS
2. Monthly production is 5000pcs assure fast delivery time
3. Professional R&D person offer permanent technical supprt and 24-month worry-free after sales services.
4. 98% 5-star reviews from customers
5. CE, ETL, UL certificates on inverters and UPS, ISO9001&ISO14001 on factory
FAQ: Q1. What is your terms of payment? A: T/T 30% as deposit, and 70% before shipment. We'll show you the photos of the products and packages before you pay the balance. Q2. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU,DDP Q3. How about your delivery time? A: Generally, it will take 5-20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q4. Can you OEM and ODM Service? A: Yes, we can provide free OEM Service and ODM Service Q5. Do you test all your goods before delivery? A: Yes, all our products are 100% tested and more than 8~12 hours for againg, and strict test before dispatch.

---
