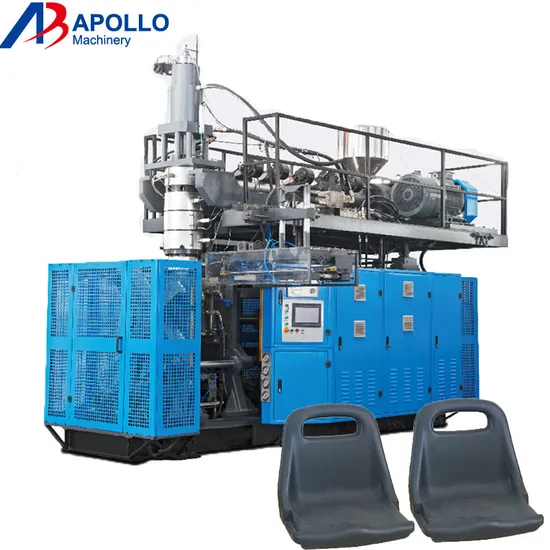

Apollo Hot Sale Plastic Baby Car Part Blow Molding Machine

Product Description

Tanks Extrusion Blow Molding Machine 60L:
ABLD90 Tanks Extrusion Blow Molding Machine is suitable for various kinds of plastic bottles in all shapes from 13L to 60L. It is widely used to produce tool boxes and big volume bucket, plastic board and related containers. Equipment with sevo parion control system can control the thickness of the product precision to 1/1000mm. It can also meet the requirement of different thickness of plastic.
Easy to operate, saved labor cost, saved enery, high efficiency to promote your productivity
You can regain the machine cost with 1-2 years
The machine looks neat and nice
Perfect function with economic investment.

Max. Product volume	50 liters
Dry cycle	450pc/h
Screw diameter	90mm
Screw L/D ratio	25 L/D
Screw drive power	37 KW
Screw heating capacity	18 KW
No.of heating zone	4 zones
Output of HDPE	130 KG/H
Oil pump drive power	30 KW
Clamping force	260 KN
Max.size of mold	450-1000mm
Mold stroke	700X950mm
Max.die diameter	340mm
Die heating power	7.6 KW
Die heating segments	4 zones
Blowing pressure	0.8mpa
Air volume	1.0 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	90 L/MIN

---
