High-Speed Milling Worktable New Aluminium Machine of End Milling Window and Door

Product Description

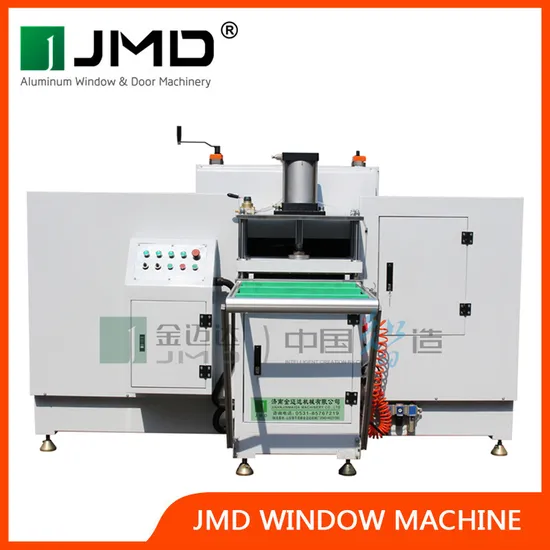

End Milling Machine(6-cutter)LXSJ6A-250
1.Aluminum Window machine -End Milling Machine Features
1. 6 independent cutters (1 vertically mounted & 5 horizontally mounted) driven by 6 motors, easy to adjust.
2. 2 of the horizontally mounted cutters can be adjusted within the range of 180°.
3. Fixed worktable and moveable cutters to ensure high processing precision.
4. Worktable width is 500mm, available to process several pieces of profiles per cycle, improving the output.
5. Guide rail: HIWIN; Cable & electric wires: Yichu; Pneumatic components: AirTAC.

2.Technical Parameters

Power supply	380V/3Phase/50Hz	Cutter quantity	6 pieces(5pcs of 250*6.5*32*40T & 1pc of 355*3.2*2.4*32*120P)
Total power	14.3kW	Cutter feeding stroke	1650mm
Input power	1.1kW	Cutter adjustment stroke	80mm(horizontal direction)/280mm(longitudinal direction)
Motor rotating speed	2800r/min	Overall dimension	3600x1600x1750mm
Air pressure	0.5~0.8Mpa	Weight	1500Kg

3.End Milling Machine Product details
4.Aluminum Machine Company profile
5.Our team
6.Export to Indonesia
7.Our clients
8. Associated Aluminum Cutting Machine
9.Why US a. We have more than 20 years of production and manufacturing experience in doors and windows machiniery
b. Top 3 door and window machine manufacturers in China
c.230 staffs professional team
d. Export to more than 40 countries
e covering an area of 300 mu

f. 3000 sets production per year
g. Cutting center Leading brand in China

---
