CNC Control Hydraulic Traveling Head Shoe Cutting Press Machine

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
XYJ-1/25
Power Supply
Hydraulic
Applicable Material
Plastic, Genuine Leather, Artificial Leather
Function
Cutting Machine
Motor Power
2.2K
Worktable Size
1600*510mm
The Traveling Head
D300 mm
The Pump
The Yuken
The Valve
Cml
The Motor Brand
Tende
Classification
Cutting Machine
Automatic Grade
Automatic
Type
Die Cutting Machine
Transport Package
Standard Export Wooden Box
Specification
25T
Trademark
CHAOYING
Origin
China
HS Code
8453800000
Production Capacity
60 Sets Per Month

Product Description

shoe cutting press machine

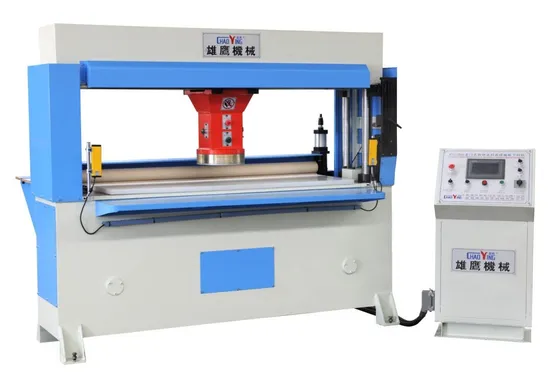

CNC Control Hydraulic Traveling Head Shoe Cutting Press Machine
Use and character
The machine is suitable for continuously cutting large batch of regular (or of the same
specification) nonmetal rolled materials by forming cutter. It is especially suitable for such
industries as sports articles (balls), sand paper, EVA sole , insole etc.
2. The precise lead screw driving unit is adopted for accurate movement and positioning
and stable operation.
3. The rubber roller pneumatic material pressing or manual material pressing is adopted.
The computer can automatically control the transverse movement distance of cutting head
and the feeding distance of pressing roller.
5. The machine has two working ways such as semi-automatic and full-automatic operations.
The workers need only to pick up the finished materials, with labor intensity reduced and work
efficiency enhanced.
Maximum momentum 250kN
Seissor speed 0.12m/s
Stroke adjustment 0- 120mm
Range between the working tables 30- 150mm
Transverse movement speed of punching head 50- 250mm/s
Feeding speed 20- 90mm/s
Size of the upper pressing board D300mm
Size of the pressing board 1600× 500mm
Motor power 3kW
Package dimension 2240× 1180×2080mm
Net weight 2300kgs
Gross weight : 2500kgs
The guarantee period one year
The MOQ ONE SET
Machine logo CHAOYING
OEM Welcomed
The die cutter :
Machine applicable :
Factory views :
Attending Fairs :
Customers' visiting
Contact informations :
