Computerized Hydraulic 1000kN Steel Rebar Tensile Traction Testing Machine/Deformed Rebar Tension Yield Strength Tester

Product Description

Product Description
1. Application
Computer Display Universal Tensile Testing Equipment is equipped with computer, printer, and general test software, to give an accurate determination of metal the material tensile strength, yield strength, the provisions of non-proportional extension strength, elongation, elastic modulus mechanical properties. Test results can print (force - displacement, force - deformation, stress - displacement, stress - deformation, force - time distortion - time) six kinds of curves and related test data, with the software self-test function that can self-diagnose problems. It is ideal testing equipment for the industrial and mining enterprises, scientific research units, universities, engineering quality supervision station. They are perfect testing instrument project quality testing section, universities and colleges, research institution and industrial and mining.
2. Standard:
ASTM E8Standard Test Methods for Tension Testing of Metallic Materials
ASTM E4 -16 Standard Practices for Force Verification of Testing Machines
ISO6892-1:2016 Metallic materials - Tensile testing - Part 1: Method of test at room temperature
ISO75000-1:Metallic materials--Verification of static uni-axial testing machines--Part 1: Tension/compression testing machines--Verification and calibration of the force-measuring system

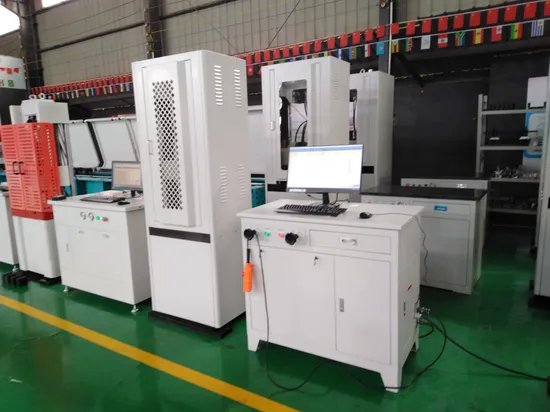

The Main Test Machine Structure are below :
Product Parameters Main Technical Parameters:

Model	WEW-300D	WEW-600D	WEW-1000D	WEW-2000D
Max.load	300kN	600KN	1000KN	2000KN
Load accuracy	Class 1
Load range	1%-100%FS
Load resolution	1/500000
Deformation Measurement Range	0.2%~100%FS
Deformation accuracy	≤±1 %
Displacement resolution	0.01mm
Displacement accuracy	≤±1 %
Displacement error	≤±1 %
Stress Control Speed	1~45 Mpa/s
Stress Control Speed	0.001~0.5 mm/s
Displacement Control Speed	0.02~3 mm/s
Constant load, deformation and displacement control accuracy	When rate <10% FS, the precision± 1% When rate ≥ 10% FS, the precision ±0.5%
Stress rate accuracy	When rate < 0.05% FS/s, the precision± 2% When rate ≥ 0.005%FS/s, the precision ±0.5%
Piston Stroke	200mm	200mm	250mm	250mm
Max. tensile test space	600mm	700mm	700mm	800mm
Max. Compression test space	550mm	650mm	650mm	750mm
Effective test space	440mm	505mm	525mm	685mm
Clamping method	Hydraulic Automatic Clamp Fixture
Round specimen clamping range (mm)	Φ5-Φ32	Φ13-Φ40	Φ20-Φ60	Φ20-Φ80
Flat specimen clamping range(mm)	0-15	0-15,15-30	0-40	0-40
Compression Plate (mm)	Φ160	Φ160	Φ200	Φ225
Bending roller width(mm)	30x120mm
Bending span (mm)	30-450mm
Power supply	3-phase, 380V, 50HZ 2.0kw (can be customized)

Packing size and weight

Model	WEW-300D	WEW-600D	WEW-1000D	WEW-2000D
Main body size (mm)	700x500x1865	1050x800x2500	860x640x2300	1100x740x2700
Oil control cabinet(mm)	1200x600x750	1130x750x930	1200x600x750	1200x600x750
Total weight (kg)	1800	1800	3500	8500

Detailed Photos
Below are the The Important parts and the Features for WAW or WEW Universal Testing Machine : Packaging & Shipping
Here are the real and actual package for kinds of testing machines:
for rubber/ wood/ steel/ metal/ concrete/ etc The computerized Control system are based by the inteligent software autonatic operation: Application in the actual use
The Hydraulic Universal Testing Machine are widely used for the kinds of material: Tensile/ Shearing/Bending/ Compression

---
