Desktop Auto Thin Film Plasma Magnetron Sputtering Coater with Vacuum Pump

Product Description

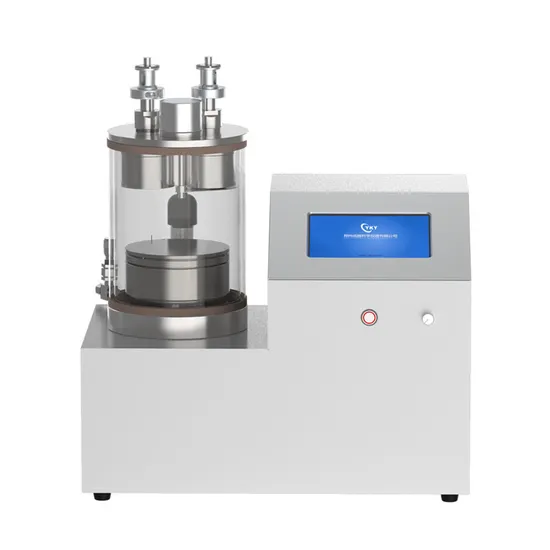

desktop auto thin film plasma magnetron sputtering coater with vacuum pump

Product name: small double target plasma sputtering coating machine with a rotatable heating sample stage
Introduction:
This type of small plasma sputtering coating machine adopts two-stage sputtering method, which is widely used for SEM sample preparation or metal coating experiment. Using low-temperature plasma sputtering process, there is no high temperature during the coating process, and it is not easy to produce thermal damage. This small plasma sputtering coater uses PLC control system, all touch screen operation, easy to learn and use. This model machine is also equipped with a rotatable sample stage, which can effectively improve the uniformity of the coating. (This equipment is equipped with a rotatable heating sample stage, which can improve the uniformity of the coating and the adhesion of the film.) This small plasma sputtering instrument uses a PLC control system, all touch screen operation, easy to learn and use. The equipment is small in size and beautiful in appearance, making it the best choice for laboratory coating experiments.
Application
It can be used for metal sputter coating, especially for metal coatings such as gold, silver and copper.
Technical parameters:

Sample stage	Size	100mm
	Rotating speed	1~20rpm adjustable
	Heating temperature	≤500ºC
	Temperature control accuracy	±1ºC PID temperature control
Plasma sputtering source	Quantity	2 inches x2
	Cooling method	Water cooling
Vacuum chamber	Chamber size	φ180mm x 210mm
	Observation window	Omnidirectional visibility
	Chamber material	High purity quartz
	Open method	Top cover removable
	Upper and lower cover material	304 stainless steel
	Pumping port	KF16
	Intake port	1/4 inch ferrule connector
Power configuration	Quantity	DC power supplyx1
	Output power	Max. 150W
	Sputtering power	1200V
	Max. sputtering current	50mA
Vacuum system	Vacuum pump type	Dual-stage rotary vane vacuum pump
	Pumping port	KF16
	Exhaust interface	KF16
	Pumping rate	1.1L/s(4m3/h)
	Ultimate vacuum	≥0.1Pa
	Vacuum measurement	Resistance vacuum gauge
Others	Power supply	AC 220V 50Hz
	Total power	2kW
	Dimension	500mm x 320mm x470mm
	Weight	30kg

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use ****** Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
More questions, please contact customer service

---
