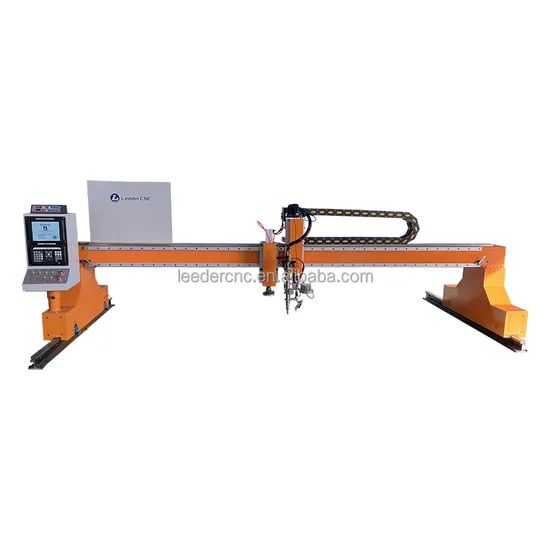

Factory Price Heavy Duty Plate Metal Cutting CNC Plasma Cutter Gantry Type Flame Cutting Machine

Product Description

Feature
# The beam uses light structural design, with good rigidity structure, light deadweight and small movement inertia.
# The gantry structure, Y axis used dual-motor dual-driven system, XYZ axis use dual-straight rail that make the machine driving smoothly with high-precision.
# Top brand plasma source, nice cutting.
# It can apply to iron sheet, aluminium sheet, galvanized sheet, steel and stainless steel metal and so on.
# Fast cutting speed, high precision, and low cost.
# The numerical control system disposes high, the automatic striking arc, the performance is stable. Product Parameters

Moldel	LEP-1530
Working area	1500x3000mm
Torch height controller	Automatic
Working table	Sawtooth
Plasma power supply	63A/120A/160A/200A/300A/400A
Control system	Starfire
Driving system	Stepper motor and driver
Transmission system	X,Y-helical rack pinion, Z ball screw
Guide rail	Taiwan high accuracy square guide rail
Software	FastCAM
Cutting accuracy	±0.2mm
Traveling speed	0-30000mm/min
Working speed	0-10000mm/min based on metal thickness

Working samples
Packaging & Shipping
Inner package: Stretch film and and water-proof film.
Outside package: Standard export plywood case.
By sea/train/air, we can do EXW/FOB/CFR/DDU/DDP trading terms.
Payment
T/T 50% in advance and we start to manufacture this machine after receiving the payment.
T/T 50% balance payment before shipping, and we will send you our machine pictures and testing videos to confirm. Then arrange the packing and shipping.
After Sales Service
Three years warranty.
7/24 after sale service.
Customer will be able to get free training advice towards our machine in our factory.
Can also get free suggestion, consultation, technical support and service by Email/Tel/WhatsApp/Skype, etc.
Any question or problem, show us pictures or videos, and then we will try our best to help you as soon as possible.
Free parts will be provided if broken not human reason within warranty.
Engineer available to overseas service.
FAQ
Q: Which one is suitable for me?
A: Tell us below information
1) Max size of your material, to choose most suitable model.
2) Maximum cutting thickness, materials, to choose suitable power.
3) Industry information and sample photos, we will recommend you best model based on our many years experience in this field.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. Most customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We can provide WeChat/Whatsapp/Email/Phone, will response within 24 hours as quick as we can to solve it for you, till to solving all questions.
Q: What's your MOQ?
A: 1 set, we will give you support with our heart and soul.

---
