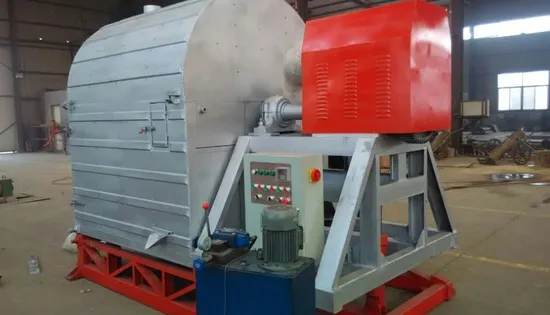

Hot Melt Type Zinc Ash Recovery Furnace

Product Description

Principle
Our zinc ash recovery furnaces are special equipment for hot-dip galvanization. They can recover the free zinc from the zinc ash. The retrieved zinc can be used directly to the hot-dip galvanizing, while the leftover zinc ash can be sold to the zinc chemical plant. If you want to lower the zinc consumption and enhance the utilization rate, you will need the zinc ash recovery furnaces.
Generally, 400~700 Kg zinc can be recovered from 1 ton of zinc ash, depending on the zinc concentration in the zinc ash. Specifically, for the zinc ash from the hot-dip galvanization of cable bridge and iron tower parts, our zinc ash recovering machine can retrieve about 600 Kg zinc from one ton of zinc ash.
Parameter of our zinc ash recovery furnaces
Zinc content of the zinc ash: 50~60% (average content: 55%) Recovery rate: max 90% (90% zinc can be retrieved from the zinc ash) Processing capacity: 500 Kg each time Processing duration: 4 hours Fuel consumption: 25L/time Necessary worker: one worker can attend four zinc ash recovery furnaces Max operation temperature 525o C Automatic control Natural gas, LNG, LPG and diesel options Short process time Safe design to cast the molten zinc into the molds

---
