Stainless Steel Spiral Apple Orange Juicer Extractor, Commercial Fruit Juice Making Machine for Sugar Cane, Garlic, Ginger, Kiwi, Tomato

Product Description

Stainless Steel Spiral Apple Orange Juicer Extractor, Commercial Fruit Juice Making Machine for Sugar Cane, Garlic, Ginger, Kiwi, Tomato
Product Description
The screw juicer extractor is widely use in various fruits and vegetables, such as carrots, tomatoes, pineapples, pears, apples, oranges, etc. It can be used in fruit processing industry, food and beverage processing plants and restaurants.The frame material can be selected from the national standard 304 stainless steel, depending on customer requirements.
- Efficiency: Fruit juice extractor machines are efficient and can extract large amounts of juice quickly, making them ideal for commercial use.- Versatility: These machines can extract juice from a variety of fruits, including hard fruits like apples and soft fruits like strawberries.
- Easy to use: Fruit juice extractor machines are easy to operate and require minimal effort to produce juice, making them user friendly. - High juice yield: These machines are designed to extract the maximum amount of juice from fruits, producing a high juice yield.
Product Parameters

Model	Output	Screw diameter	Crusher Power	Main Power	Strainer
Juice extractor without Crusher
AG-0.5T	500kg/h	88mm	/	1.5kw	0.6mm
AG-1.0T	1000kg/h	125mm	/	3kw	0.6mm
AG-1.5T	1500kg/h	175mm	/	7.5kw	0.6mm
Juice extractor with Crusher
AG-0.5TG	500kg/h	88mm	1.5kw	1.5kw	0.6mm
AG-1.0TG	1000kg/h	125mm	1.5kw	3kw	0.6mm
AG-1.5TG	1500kg/h	175mm	2.2kw	7.5kw	0.6mm

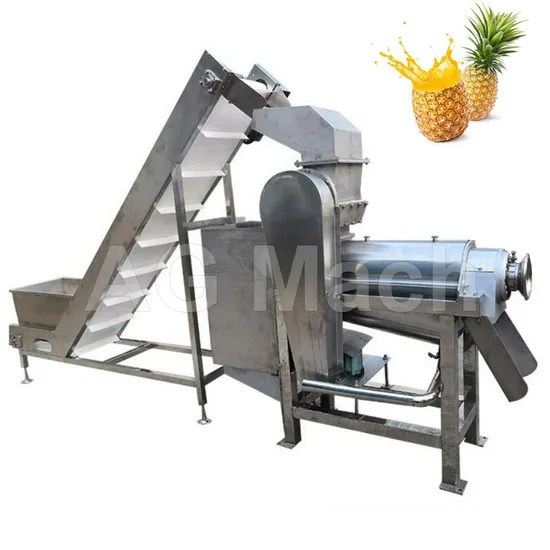

Detailed Photos
Without Crusher & With Crusher:
Related Production
Small Juice Production Line:
Working Principle
Working principle of juicer:
1. The main component of the equipment is the broken pulp, juice and skin entering the spiral juice extractor through the feeding hopper.2. The spiral diameter gradually increases along the direction of the slag outlet and the pitch gradually decreases.3. When the material is spirally advanced, the spiral is caused by the spiral.4. The volume of the cavity is reduced to form a press of the material.5. The direction of rotation of the helical main shaft is viewed from the feed hopper toward the slag groove in a clockwise direction.6. The raw material is added to the feed hopper, pressed under the advancement of the spiral, and the pressed juice flows
through the filter into the bottom of the juice extractor, and the waste is discharged through the annular gap formed between the spiral and the tapered portion of the pressure regulation.7. The movement of the pressure regulating head in the axial direction can adjust the size of the gap.8. For clockwise (when the seat is turned from the tapping groove of the device to the end of the feed hopper, the head is turned to the left, the gap is reduced, and the gap is enlarged.)9. The size of the gap is changed, that is, the row is adjusted. The resistance of the slag.
10. The slag removal rate can be changed, but if the void is too small, under strong extrusion, some of the slag particles will be extruded through the filter together with the juice.11. Although the juice is increased, the quality of the juice is relatively decreased, and the size of the void should be regarded as User specific process requirements.12. Stainless steel spiral fruit and vegetable juice extractor is suitable for a variety of fresh fruit and vegetable beating separation.
Preparation
1. Stabilize the machine on the foundation and tighten the chassis foot screws;
2. Open the cylinder, clean up the debris, and clean it. When cleaning, be careful not to let the water leak on the motor.
3. Adjusting the gap between the scraper and the inner wall of thescreen as 1.5~2mm;
4. Adjust Scraper helix angle; Rotate the spindle by hand to checkwhether it is flexible, and close the upper cylinder tightening screw.
