3015 2kw Fiber Metal Laser Cutting Machine with Exchange Platform

Product Description

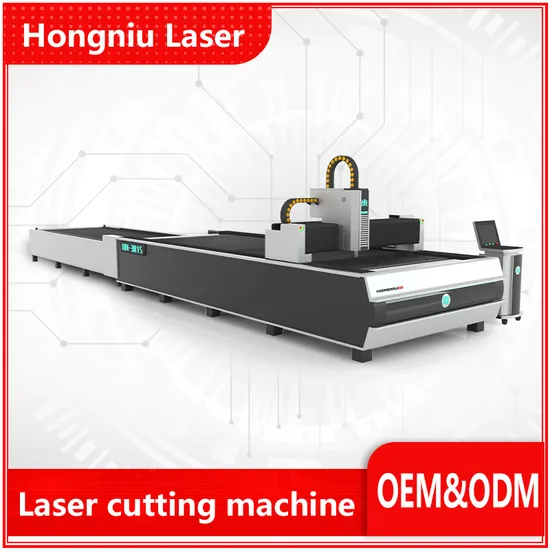

3015 2kw fiber metal laser cutting machine with exchange platform
HN3015 is fast speed mild steel cnc fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 800 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

Model	HN3015(3020 4020 6020)
Working area	3000*1500mm
Miximum length of pipe(Options)	3000mm(or)6000mm
Limits of pipe(Customized)	Round tube:Φ20mm~Φ120mm; Square tube :Φ20mm~80mm; Circular tube: Φ20mm~Φ120mm;Square tube: Φ20mm~80mm
Laser type	Fiber laser generator
Laser power(optional)	1000~4000W
Transmission system	Double serve motor &gantry&rack&pinion
Maximum speed	±0.03mm/1000mm
Pipe cutting system(optional)	yes
Maximum speed	60m/min
Maximum accelerated speed	1.2G
Position accuracy	±0.03mm/1000mm
Reposition accuracy	±0.02mm/1000mm
Graphic format supported	CAD,DXF(etc)
Power supply	380V/50Hz/60Hz

(1). High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.
(2). Gantry double-drive structure,with imported Germany rack & gear transmission system, which improves the production efficiency.
(3). High-performance cast aluminium guide rail, after infinite aalysis, which accelerates the cicular arc cutting speed.
(4). High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
(5). The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
(6). The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
• Synchronized gantry with rack & pinion servo motor system, high rigidity, heavy welding frame, fine milling by laser gantry CNC milling machine, tempering treatment and vibration aging to eliminate stress, ensure the machine for long term stability.
• MAX/RAYCUS/IPG Laser generator, professional cable, gives high reliability and stability.
• Schneider, Schneider contractors, Schneider breakers, etc.
• Able to continuously cut high reflective materials such as copper, brass, galvanized sheet etc.
• High Rigidity, Aviation Aluminium Gantry, improve the gantry strength.
• Shuoda ultra-high pressure solenoid, Schneider electrical & electronics parts, SMC precision electronic control proportional valve.
• Major parts are comply with international standards, thus ensures Stability, Rigidity and Robustness.
• Every parts like Computer, Controller and Drives are integrated within the machine provides easy access and space saving ability to the user.
1. The plate cutting part, our standard cutting area is 3000*1500mm, also can be made depends on customers requirements.
2. Cast aluminum beam, its strength, plasticity, impact toughness, fatigue performance and weld ability are very good, cast aluminum beam has a lighter weight, easy to move at high speed during cutting, to achieve various types of graphics in the case of accuracy Fast cutting.
3. This machine has a warranty period of 2-3 years, during the warranty period, our company unconditionally supports the after-sales maintenance of the machine.

---
