1bzdx-6.2 Combined Ground Preparation Machine

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
1BZDX-6.2
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Trailed
Arbor Configuration
Vertical Shaft
Color
Green/Yellow/Blue
Model
1bzdx-6.2
Weight
5600
Working Width
6.2
Working Depth
20
Blade Spacing
270
No of Disc
48
Dia.of Disc
620
Productivity
4
Linkage
Trailed
Transport Package
Iron Frame Box
Specification
CE, RoHS, SGS, GMP
Trademark
DADI
Origin
Shandong Yucheng
HS Code
8433110000
Production Capacity
10000PC/Year

Product Description

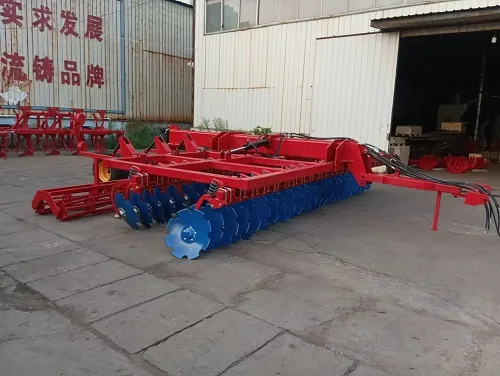

1BZDX series wing-folded heavy-duty disc harrow are mainly used for cleaning away stuble of plants before tillage,or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields,they can also be used as a plough for primary tillage in dry culdtivated fields. The series produced are all fitted with hydraulic rubber wheel for transportation.It is easy to be transported and change direction on the edge of fields.
Specifications:
Model unit 1BDZX-6.2
Harrow form - spring leg
Roller - frong and rear
working size mm 6200×6580×1550
transport size mm 6000×3050×3800
width mm 6200
working depth mm 100~200
Quantity od disc pc 48
Diameter of disc mm 620
thicknedd mm 6
spacer mm 270
hard HRC42-48
material - 65mn
quantity of bearing pc 48
weight kg 5610
Tyre 400/60-15.5
Tyre position - back
Hitch - half trailed
transport mm ≥260
Matched power HP 200-280
Material of frame - 16Mn
fold way - hydraulic
