Hydraulic Pump Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Pump

Product Description

Hot Sales

Product Description
Introduction of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
The concrete conveying pipe shall be piped according to the characteristics of the project and construction site and the concrete pouring plan. It is advisable to shorten the length of the pipeline and use less elbows and hoses. The laying of the conveying pipe shall ensure safe construction, which is convenient for cleaning the pipeline, troubleshooting and assembly, disassembly and maintenance. In the same pipeline, concrete conveying pipes with the same diameter should be used; when new and 1-day pipe sections are used at the same time, the new pipe should be arranged at the place where the pumping pressure is higher; the pipeline should be arranged horizontally, horizontally and vertically.
zmwm21
Product Parameters
Parameters of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump

Maximum Theoretical Concrete Delivery Volume	35m³/h
Maximum Pumping Concrete Pressure	10MPa
Distribution Valve Form	S-pipe valve
Concrete Conveying Cylinder Bore*Stroke	Φ160*1000mm
Outlet Diameter	Φ150mm
Rated Power	45KW
Rated Speed	1480r/min
Hydraulic Circuit Form	open circuit
Pumping Xiyong Oil Pressure	28MPa
Stirring System Oil Pressure	8MPa
Hydraulic Tank Volume	240L
Maximum Conveying Vertical Distance	120m
Maximum Conveying Horizontal Distance	250m
Maximum Particles Allowed	40mm
Dimensions L*W/*H	3800*1700*1700mm
Total Mass	2600KG

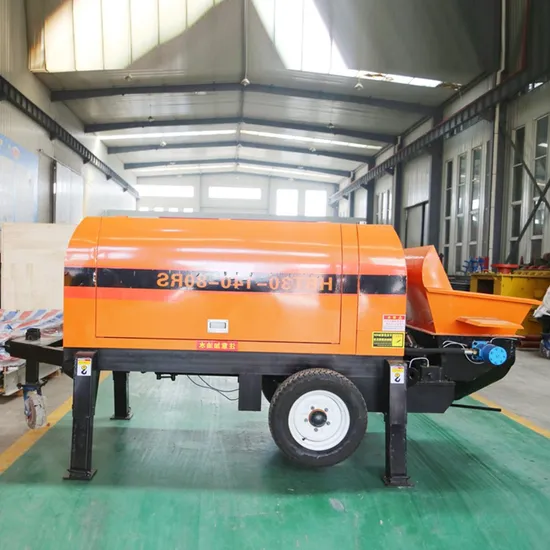

Detailed Photos
Photos of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
