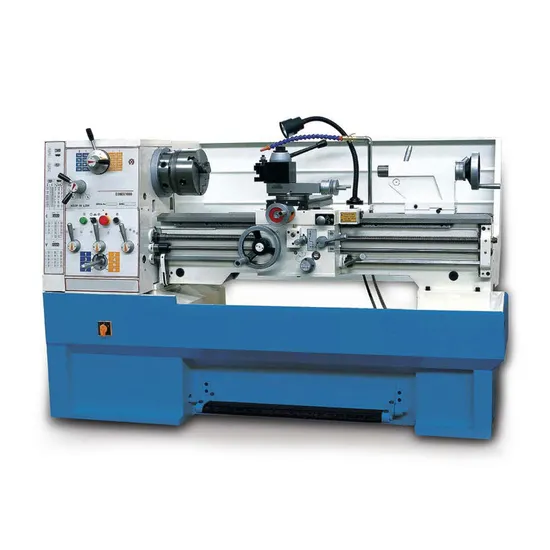

Heavy Duty Horizontal Metal Lathe Machine Manual Lathe Parallel Lathe for Sale # 2 Axis digital readout system (optional)# Quick change toolpost with 5 holders (optional)# Concertina leadscrew cover (optional)# Gear drive headstock for quick change of spindle speeds# Precision V-beds are hardened and ground, incorporating a rigid webbed casting# Foot operated spindle brake with safety cut out switch# Change gears for metric and imperial thread cutting# Adjustable taper roller bearings support the spindle# Inching button is incorporated on the control panel for convenient spindle speed selection# Enclosed quick action gearbox for thread cutting and auto feeding# Powered longitudinal and cross feeds# D1-6 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard# Removable gap bed-way for larger diameter jobs
| technical parameter | Specification | Models |
| CM6241×1000/1500 | CM6241V×1000/1500 |
| Processing range | Capacity | |
| Maximum workpiece turning diameter on the bed | Swing over bed | 410mm(16") |
| Maximum workpiece turning diameter on the carriage | Swing over cross slide | 255mm(10") |
| Maximum turning diameter in the saddle groove | Swing in gap diameter | 580mm(23") |
| Active length of the saddle in front of the faceplate | Length of gap | 190mm(7-1/2") |
| Two top center distance | Admits between | 1000mm(40")/1500mm(60″) |
| Spindle center height | Center height | 205(8″) |
| Bed width | Width of bed | 250(10") |
| Spindle | HEADSTOCK | |
| Spindle end | Spindle nose | D1-6 |
| Spindle through hole diameter | Spindle bore | 52mm(2") |
| Spindle bore taper | Taper of spindle bore | No.6Morse |
| Spindle speed range | Range of spindle speed | 16 changes 45-1800r/min | 30-550r/min or 550-3000r/min |
| Feed and thread | FEEDS AND THREADS | |
| Small pallet maximum longitudinal stroke | Compound rest travel | 140mm(5-1/2") |
| Middle carriage maximum lateral travel | Cross slide travel | 210mm(8-1/4") |
| Large screw specifications | Lead screw thread | 4T.P.I. |
| The maximum size of the cutter bar (width × height) | Max.Section of tool (W×H) | 20×20mm(13/16") |
| Longitudinal feed range | Longitudinal feeds range | 0.05-1.7mm/rev(0.002"-0.067"/rev) |
| Horizontal feed range | Cross feeds range | 0.025-0.85mm(0.001"-0.0335"/rev) |
| Metric thread range | Threads metric pitches | 39kinds 0.2-14mm |
| Inch thread range | Threads imperial pitches | 45kinds 2-72T.P.I |
| Diameter thread specification | Threads diametral pitches | 21kinds 8-44D.P. |
| Modular thread specification | Threads module pitches | 18kinds 0.3-3.5M.P. |
| Tailstock | TAILSTOCK | |
| Tailstock sleeve diameter | Quill diameter | 50mm(2") |
| Tailstock sleeve stroke | Quill travel | 120mm(4-3/4") |
| Tail sleeve inner hole taper | Quill taper | No.4 Morse |
| Lateral adjustment | Cross adjustment | ±13mm(±1/2") |
| Motor | MOTOR | |
| main motor power | Main motor power | 2.2/3.3kW(3/4.5HP)3PH |
| Cooling pump power | Coolant pump power | 0.1KW(1/8HP),3PH |
| Dimensions and weight | DIMENSION AND WEIGHT | |
| Dimensions (length × width × height) | Overall dimension(L×W×H) | 194×85×132cm/244×85×132cm |
| Box size (length × width × height) | Packing size(L×W×H) | 206×90×164cm/256×90×164cm |
| Net weight / gross weight | Net weight/Gross weight | 1160kg/1350kg 1340 kg /1565 kg |
