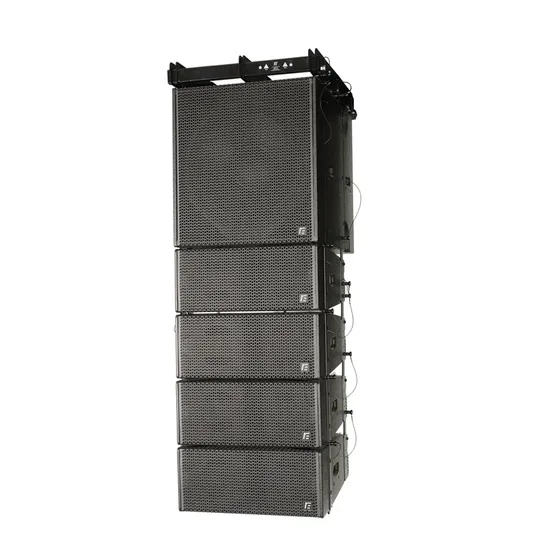

Professional Indoor and Outdoor Stage Loudspeaker Active Line Array System Vk10

Product Description

Product name:Single 10" two-way bi-amp line array speaker with DSP
We are leading Pro-loudspeakers and Amplifiers manufacturer and the most reliable supply chain provider with over 26 years experiences in Audio speaker industry.Our monthly output is exceed 2000pcs. Down below is our scope of business.
* Line-Array Loudspeaker System
* Subwoofer Loudspeaker
* Multi-function Loudspeaker,Self-Powered Loudspeaker
* Sound Reinforcement System,PA system
* Amplifier Series
* Paperless Conference System or relevant products and solutions
Specification:
Single 10" Passive top:

Frequency response	80Hz~18kHz(±2dB)/70Hz~19kHz(-10dB)
Sensitivity( 1W/1m )	HF:110dB LF:104dB
Nominal Impedance	HF:16Ω LF:16Ω
Power rating( AES )	HF:75W LF:300W
LF Unit	1×10"(Neodymium/65mm Voice Coil)
HF Unit	1 ×3"(75mm voice coil )
Dispersion(HxV)	100°x10°
SPL(continue/peak)	HF:128/134dB LF:128/134dB
Connectors	NEUTRIK NL4MP×2 HF:2+2-,LF:1+1-
Dimension(H×W×D)	308×593×435mm
Net Weight	26( kg )

Single 18" Active Subwoofer:

System	18"self-powered subwoofer with DSP	4 channel D class	2×Neutrik Powercon IN/OUT
Sensitivity(1W/1m)	98dB	amplifier modular(with DSP)	output power 4Ω:2000W×4 output power 8Ω:1000W×4 output power 16Ω:600W×4
Frequency response	40Hz~200Hz(±2dB)/30Hz~300Hz(-10dB)	Gain	32dB
Power rating(AES)	900W	S/N	115dB (A weight)
SPL(continuous/peak)	127.5dB/132.5dB	RMON	with load impedance monitoring function
Nominal impedance	8Ω	Operating voltage rang	AC90-264V, 50/60Hz
LF unit	18"neodymium LF unit(100mm)	Dimension(H×W×D)	581×593×660mm
Connectors	1×Neutrik NL4 Speakon 4core plug(HI:2+2-,LF:1+1)
	1×Neutrik NL4 Speakon 4core plug(SUB:1+1-)
	2×Neutrik XLR IN/OUT
	1×Neutrik AES3 IN
	2×Ethernet port RJ45 IN/OUT
	2×Neutrik Powercon IN/OUT

Features: 1.VK10: Single 10" line array speaker with high precision devices, compact desgin working at high sound pressure level; Imported 1x3" B&C high unit with DCH patent,1x10" B&C medium and low unit with ACPD patent.

2.VK10SA:Single18" active subwoofer,with built-in DSP module,4*1000W/8Ω output channel,urtral compact design with amazing acoustic performance.New switching Frequency Power supply Design with Power Factor Correction and Intelligent Management Technology to ensure realize the optimal performance and high predictability. With DSP processing ability, the efficiency reached a new height,to provide the best solution for 1×VK10SA+1×VK10S+4×VK10 three way system.
Our Advantages: 1) Audited supplier by SGS international certificate organization2) Product quality: Superior speaker and amplifier, top technology and quality.3) Certificate: CE,RoHS,SGS,ISO9001,ISO14001,ISO27001,ISO20000-1,ISO180014) Monthly Production Capacity: 2000pcs5) Fast delivery: Get your order when you need it.6) 5000 square meters workshop, with about 200 workers and 20 professional engineers7) Professional and Skilled in audio knowledge ---can design complete audio system for you8) Convenient Transportation: 1 hour to Guangzhou port9) 24 hours after sales service. Application: Stadium,Theatre,Auditorium,Banquet hall,Multi-function hall,Touring,Portable application Premium Components: B&C Speaker unit + Powersoft DSP + Powersoft AMP module + User friendly software
FAQ: Q1: How long is the warranty for the speakers?
A1: 1year warranty. Q2: How about the delivery time?
A2: 3-7days for stock. 10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment. Q3: What kind of payments does RF support?
A3: T/T, Western Union, Cash are accpeted. Q4: What's the MOQ?
A4: MOQ is 1pcs Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome . Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information. At the same time, please rest assured that your information is also safe here. If there is any questions,please do not hesitate to contact us for freely!

---
