High Quality Pontoon Amphibious Excavators with Floating Undercarriage Pontoon

Product Details

Product Description

Product Description

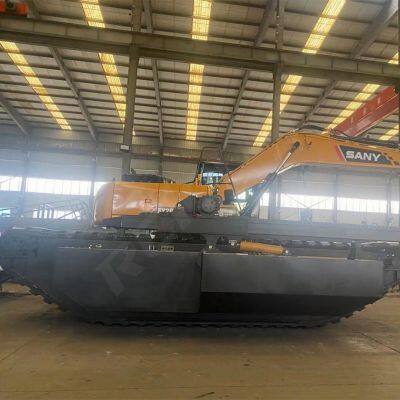

Amphibious excavators are multi-purpose excavators used in land, shallow water, marsh and deep water areas. After years of practical testing, Relong amphibious excavator has been recognized and trusted by the majority of users. The upper half structure can choose the excavator brand and all kinds of machine you need. Various types of buoyancy tank have been designed and widely used, which can be adapted to 5-40 ton excavator, and can also be customized according to your working conditions and requirements, in accordance with your exclusive scheme.

Description	Model Specification
	RL-AE06	RL-AE12	RL-AE20	RL-AE25	RL-AE30	RL-AE34	RL-AE40
Track length on ground	2700mm	3500mm	5000mm	5000mm	6500mm	7000mm	7000mm
Max. Track Length	5700mm	6200mm	9500mm	9500mm	10500mm	11500mm	13500mm
Transportation Length	7260mm	8070mm	11460mm	11660mm	13610mm	14480mm	14480mm
Transportation Height	3700mm	3700mm	3950mm	3950mm	4040mm	4140mm	4800mm
Counterweight clearance	1810mm	2010mm	2010mm	2010mm	2010mm	2210mm	2540mm
Spud height	6000mm	6000mm	8000mm	8000mm	10000mm	12000mm	12000mm
Overall width(with spud)	5500mm	6160mm	6800mm	6800mm	8000mm	8000mm	8000mm
Track side	1640mm	1840mm	1840mm	1840mm	1840mm	2040mm	2340mm
Track gauge	3500mm	3660mm	3700mm	3700mm	4700mm	4700mm	4700mm
Overall width(no spud)	4500mm	5160mm	5200mm	5200mm	6400mm	6400mm	6400mm
Single track width	1300mm	1500mm	1500mm	1500mm	2000mm	2000mm	2000mm
Spud space	4000mm	4500mm	5600mm	5600mm	5600mm	6000mm	6000mm
Spud span	4900mm	5560mm	5600mm	5600mm	6800mm	7000mm	7000mm
Max.digging reach	6700mm	8210mm	9790mm	9990mm	10720mm	10740mm	11240mm
Max. Digging reach on ground	6500mm	8010mm	9699mm	9899mm	10520mm	10520mm	11040mm
Max. Digging depth	3400mm	5580mm	5660mm	5860mm	6415mm	5910mm	6365mm
Max. Dumping height	5174mm	6755mm	7880mm	8080mm	8163mm	8296mm	8605mm
Min. Dumping height	2583mm	3300mm	2501mm	2501mm	3638mm	3838mm	4370mm
Max. Digging height	8510mm	9055mm	9980mm	9980mm	11040mm	11320mm	11530mm
Max. Bucket pin height	6203mm	8040mm	8267mm	8267mm	9610mm	9610mm	10300mm
Max. Vertical digging depth	2027mm	2505mm	3029mm	3029mm	4050mm	3080mm	3980mm
Max. Vertical radius	4046mm	5555mm	6980mm	6980mm	8079mm	9275mm	9070mm
Min. Digging Clearance	325mm	465mm	562mm	562mm	420mm	910mm	1760mm
Max. Swing radius	2365mm	2445mm	3560mm	3560mm	4019mm	4413mm	4505mm

Relong Technology Co., Ltd. is located in Qingdao City, Shandong Province. It is a company dedicated to intelligent robots, ship design, water transportation equipment, marine water quality and ecological environment testing, salvage services; industrial automatic control system devices, radar and supporting equipment, communication equipment, which is a high-tech enterprise integrating sales and artificial intelligence software development, including consulting, design, production, installation, and operation management. Relong provides one-stop customized service according to each client's different dredging site condition. Professional design, international welders welding work, professional field service and after-sale service are the foundation of Relong brand equipment high quality and high reputation.
Q: What are your factory workshops?
A: Our factory production process includes casting, mechanical process, lathe process, heat treatment, assembly, and test, etc. Warmly welcome to visit & test my factory any time.
Q: How does your factory do regarding quality control?
A: "Quality is a priority. We always attach great importance to quality controlling from the beginning to the end. Our factory has 15~30 QC.
Q: Is it easy for customers to change the parts by themselves?
A: Yes, the structure is simple, customers can change it very easily. We will also supply you with maintenance tools for free.
Q: Can you install the motor or diesel engine with the pump for us?
A: Yes, we can, it's no problem, we are experienced in this.
Q: We don't know which pump model we need, can you help us?
A: Yes, please tell me your detailed requirements, include liquid, flow rate, head, etc,
My engineers teal will calculate & select the most suitable pump model for you, offer a pump solution for you.
Q: How long can you reply to us if we send an inquiry?
A: Generally within 2 hours, we will send you an official quotation sheet, with price, technology data, performance curve, dimension, etc.

---
