Phoenix Electrnoic 120 150 185 240 mm2 Tinned Copper Mechanical Lug Ring Terminal Wire Cable Lug with Inspect Hole

Product Description

Product Description

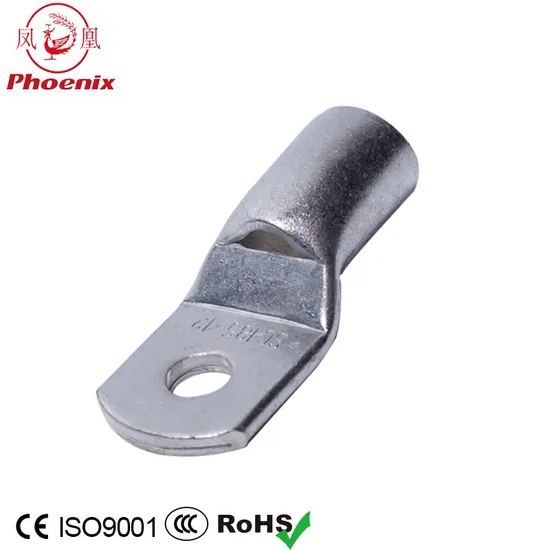

Hot Selling SC(JGK) Tinned Copper Cable Lug with Inspect Hole Hot Selling SC series Tinned Copper Cable Lug with Inspect Hole are suitable for the connection of copper conductors( section 1.5mm2 - 1000mm2 ) in power cable with electronic equipment. They are made of copper tube T2 and coated with tin. Their working temperature is -55 to 150.
Product Parameters

Item No.	φ	D	d	L	S
JGK-1.5	4.2,5.2	3.5	2.5	18	1
JGK-2.5	4.2,5.2	4	3	19	1
JGK-4	5.2,6.4	4.8	3.5	20	1.2
JGK-6	5.2,6.4	5.5	4.1	23	1.4
JGK-10	6.4,8.4,10.4	6.7	5.1	25,27	1.6,1.4,1.2
JGK-16	6.4,8.4,10.4,12.4	7.5	5.7	29.5,31.5,33	1.8,1.6,1.3,1
JGK-25	6.4,8.4,10.4,12.4	9	7.2	32,33,34.5	1.8,1.6,1.4
JGK-35	6.4,8.4,10.4,12.4	10.5	8.5	37,38.5	2,1.8
JGK-50	8.4,10.4,12.4,14.4	12.5	10.1	45	2.4
JGK-70	8.4,10.4,12.4,14.4	14.5	11.7	49	2.8
JGK-95	8.4,10.4,12.4,14.4	17	13.8	54	3.2
JGK-120	10.4,12.4,14.4,16.4	19.5	15.7	62	3.6
JGK-150	12.4,16.4	20.5	16.7	68	3.8
JGK-185	16.4	23.5	19.1	76	4.4
JGK-240	16.4	26	21.4	90	4.6
JGK-300	16.4	30	24.6	100	5.4
JGK-400	16.4	34	27.4	110	6.6
JGK-500	20.5	38	30.8	120	7.2
JGK-630	20.5	45	35.6	135	9.2
JGK-800	20.5	50	40.4	170	9.6
JGK-1000	20.5	55	45	200	10

How to connect the wires?
Packing & Delivery
(A) Common packing:Poly bag + Neutral Label + Export carton
(B) Special packing:
a. Colorful printing poly bag + Export Carton
b. Colorful inner box + Export carton
c. OEM Label, Inner box, Blister etc
Delivery
Variety of delivery way is available,like ship by sea, DHL, FEDEX, TNT etc. Our Service 1. Fast delivery, have rich storage.
2. OEM and special packing, like Blister, Tube Box, Header card, PDQ are all available.
3. CE, RoHS, Reach, UL, VDE are safe guarantee of our products from our trusted factories.
4. Has Products Development Engineers and mold designers, make us have strong R&D Capability.
5. Technicians and QC help us have faith on quality.
6. Own technical department and mold workshop make us have ability to meet special request from customer.
