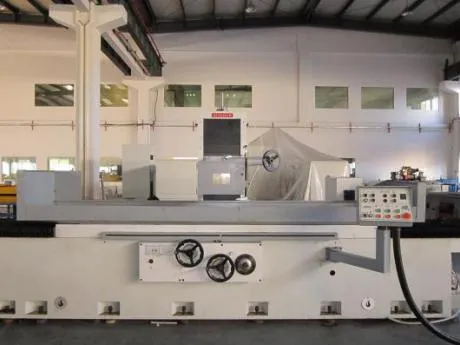

Factory Stock Direct Sales Surface Grinder Kgs515ah/Ahd Precision Surface Grinder Hand Cranked Grinder

Product Description

Product Description
Feature
1. Well designed cast iron structure provides excellent dampening
2. Flange mount spindle cartridge for superior side grinding rigidity
3. Grinding spindle features low-maintenance preload high precision angular ball
bearings(NSK P4 grade)
4. "V" and flat type guide way which precision hand scrapped turcite saddle ways for smooth and long lasting performance
5. Table guideways are hardened, ground and counter-laminated with PTFE(TEFLON) to ensure high wear-resistance
6. Centralized automatic lubrication system ,supplies oil to guide-ways and lead-screws as the machine operates. This system ensures all the critical components are lubricated with the right amount of oil at all times
7. Separate hydraulic tank prevents heat and vibrations from being transferred to the machine
8. Electric components and functional modules are well arranged and packed in the electric cabinet, making maintenance and trouble-shooting easily accessible
9. Magnetic force can be adjusted
10. Safety 24V control circuit power
Main Configuration of Grinding Machine
1. Spindle motor: Use ABB brand which from Sweden.
2. Spindle bearing: Use NSK brand P4 grade precision ball bearing which from Japan.
3. Cross screw: Use P5 grade precision ball screw.
4. Main electrical components: Use SIEMENS brand.
5. Main hydraulic components: Use brand from TAIWAN.
Standard Accessories (free)

1	Grinding wheel	2	Wheel flange
3	Wheel balancing base	4	Wheel balancing arbor
5	Extractor	6	Diamond dresser
7	Leveling pad	8	Anchor bolt
9	Tool box with tools	10	Electric magnetic chuck
11	Cooling tank	12	Working light

Optional Accessories

Serial No.	Name of Article
1	DRO (digital read out)
2	Rear splash guard
3	Hydraulic Tank Oil Cooling
4	Overhead parallel dresser
5	Cooling & suction device
6	Magnetic separator
7	Cooling magnetic paper filter
Note	6 and 7 , select one just OK.

Parameters		Unit	KGS515AH/AHD
Working Surface of Table		mm	500x1500(20"x60")
Max.Table Travel		mm	1600
Max.Cross Travel		mm	570
Distance Between Table Surface and Spindle Center		mm	590
Max.Table Load		kgs	700
Tee Slot(NumberXWidth)		mm	3x16
Table Speed		m/min	5~25
Crossfeed Handwheel	1grad	mm	0.02
	1rev		5
Automatic Crossfeed		mm	0.5~12
Power Cross Feed	50Hz	mm	1250
	60Hz		1500
Grinding Wheel		mm	355x40x127
Spindle Speed	50Hz	rpm	1450
	60Hz		1740
Vertical Handwheel	1grad	mm	0.002
	1rev		0.5
Automatic Down Feed Rate		mm	0.005~0.04
Power Head Increment		mm	230
Spindle Motor		kw	5.5
Vertical Motor		kw	370
Hydraulic Motor		kw	2.2
Dust Collection Motor		w	550
Coolant Motor		w	90
Crossfeed Motor		kw	370
Floor Space		mm	58100x2445
Packing Dimensions		mm	4000x2260x2250
Net Weight		kgs	6000
Gross Weight		kgs	7000
