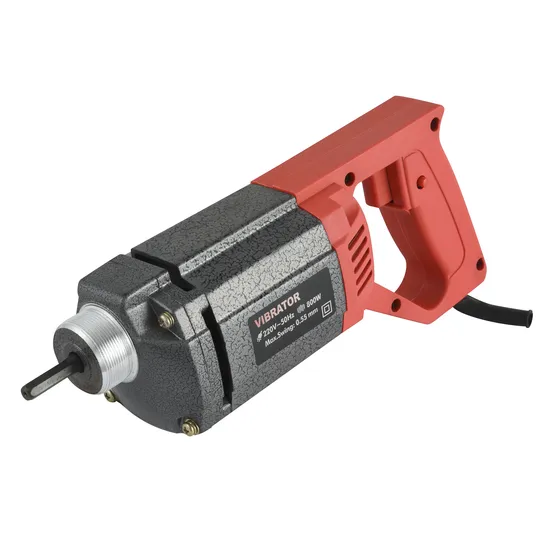

1200W Electric Hand-Held Concrete Vibrator with Shaft

Product Description

1. PORDUCT DESCRIPTION
Electric Hand-held concrete vibrator with hose is a universal motor for driving a pendulum system of concrete vibrator poker. With strong housing, qualified rotor & stator, high level of carbon brush, it provides both superior dynamic to the flexible shaft & poker, and also reliable performance & long lifetime.This tool is an ideal product for small concrete working.It is hot in power tools filed.
2. FEATURES
- Powerful & reliable motor.
- Well protected carbon brush but easy change, convenient for maintenance.
- Easy assembling & disassembling for coupling between motor & shaft, no any tool needed.
- Variety size of poker head could be suitable for different working condition.
- High-authority of vibration on poker head.
3. TECHNICAL DATE MOTOR

Model	Power	Voltage	Frequency	No-load Speed	Body Material	Net Weight	Package
ZN35	800W	110V/220V	50~60Hz	4300RPM	Plastic	1.8Kg	42x34x32cm,10Pcs/Ctn
ZN50	1200W	110V/220V	50~60Hz	4300RPM	Plastic	2.0Kg	42x34x32cm,10Pcs/Ctn

4. TECHNICAL DATE HOSE

Model	Vibrating of head	Diameter of rubber hose	Diameter of flexible shaft	Total length	Package
ZN25	28MM	28MM	8MM	1~4m	103x22x5cm,5pcs/ctn; 153x22x5cm,5pcs/ctn, 75x55x4.5cm,1pcs/ctn
ZN35	35MM	30MM	10mm	1~4m

5.PHOTO SHOW
6.TOP HIGHLIGHTS
1- Powerful Concrete Vibrator: 1200W Concrete Vibrator More power than 3/4 HP(550W). Voltage: 110V~230V; Diameter: 1-3/8 inches, Lightweight and compact design for all day use.
2- Efficiency Concrete Vibrator 1-3/8" diameter vibrator, 4,000 vpm, improve your work efficiency.
3- Long Work Area 6.6ft. long shaft for easy use and long reach, enlarge your work range.
4- Handheld concrete vibrator with ergonomics design lock-on button for extended use, it can reduce your work pressure.
Notes:
If vibrator cannot work, please knock the vibrating bar on the ground several times, then it will work. Because the vibrator is working when you put the power on, but the vibrating bar does not get the same frequency with the vibrator. After the vibrating bar knocks the hard stuff, it will have the same frequency with the vibrator to work well. If the machine still does not start after this operation, please kindly contact us.
Quality Assurance
If you have any questions during use, please contact us, because 100% customer satisfaction is our goal!

---
