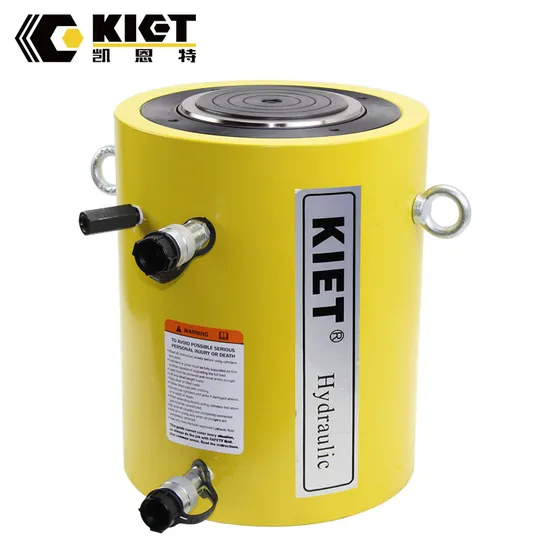

Clrg-502 50ton Stroke 50mm Double Acting High Tonnage Hydraulic Cylinder

Product Description

Company Profile

Jiangsu Canete Machinery Manufacturing Co., Ltd. is a national high-tech enterprise and manufacturer of hydraulic devices special for large-scale heavy-duty jacking and lifting field. Integrating system design, product R & D, production, marketing and import & export, KIET provides a full range of high quality hydraulic tools and professional comprehensive solutions for customers.
Relying on advanced scientific technology in Europe and America and gathering elite talents at home and abroad, KIET focuses on solving major engineering problems in the fields of heavy load, precise control, multi-logic actions, multi-point control, etc.
After more than 20 years development, KIET has established a rigorous production and operation system and a perfect quality control system. Through continuous innovations, serialized products and solutions are gradually formed in the fields of multi-point synchronous lifting,pushing,hoisting, translation, tensioning, weighing of asymmetric large components, space posture adjustment, and intelligent walking of large equipment and components. KIET has won praise from domestic and foreign customers for its high-quality products and excellent services. At present, KIET's business has spread to more than 100 countries and regions in the world, covering roads and bridges, construction, petrochemicals, metallurgy, power, mining, ships, offshore engineering field.
Adhering to the core concept of "Ingenuity for manufacturing, service for the world", KIET continues to expand scientific research strength, forge ahead, strive for first-class, and provide customers with safe, reliable and efficient equipment and service.
Product Description
Introduction
Double acting high tonnage hydraulic cylinder (electric hydraulic cylinder) has the characteristics of large output power, light weight, and long distance operation in any space position. Equipped with electric hydraulic pump station, it can realize various operations such as lifting, pushing, pulling, squeezing and pressing. It is widely used in equipment installation and maintenance of transportation, railway, bridge, shipbuilding, construction, factories and mines. High tonnage hydraulic cylinders have the most functions and the strongest lifting durability, especially designed for heavyduty lifting, heavy pressure and industrial production.
Features
1. Max. working pressure: 700bar
2. Double-acting design contribute to fast lifting speed and retracting speed
3. Built-in safety valve prevents damage in case of over-pressurization
4. Hard chrome-plated piston rod prevent corrosion and strain
5. Dust ring design prevents contamination inside the cylinder
6. 3/8"-18NPT coupler and dust cap are included on all models
Application Industry
Synchronous lifting to replace rubber bearings for bridge maintenance
Bridge synchronous lifting and settlement renovation
House translation and lifting
Synchronous lifting and replacement of steel plant blast furnace
Synchronous Lifting and Maintenance of Steam Turbine in Power Plant
Synchronous lifting and maintenance of hydraulic turbines in hydropower plants
Shipyard main engine and diesel engine installation and adjustment
Synchronous lifting and maintenance of electric shove in mining company
Slope adjustment and docking of urban viaduct
Synchronous lifting and raising of overpass
Static pile test
Cement plant rotary kiln maintenance lifting
Synchronous lifting of coal mill overhaul in thermal power plant
Transformer synchronous lifting up in place
Shipyard hull synchronous lifting
Large equipment lifting and maintenance
Product Parameters

MODEL	CAPACITY (T)	MAX. WORKING PRESSURE (MPA)	CLOSED HEIGHT (MM)	STROKE (MM)	EFFECTIVE AREA (CM²)	OIL CAPACITY (CM³)		OUTSIDE DIAMETER (MM)	WEIGHT (KGS)
						PUSH	PULL
KET-CLRG-502	50	70	166	50	77	385	192	130	17
KET-CLRG-504			216	100		770	385		20
KET-CLRG-506			266	150		1155	577		23
KET-CLRG-508			316	200		1540	770		27
KET-CLRG-5010			366	250		1924	962		31
KET-CLRG-5012			416	300		2309	1155		34
KET-CLRG-1002	100	70	183	50	132.7	664	309	165	29
KET-CLRG-1004			233	100		1327	619		34
KET-CLRG-1006			283	150		1991	928		40
KET-CLRG-1008			333	200		2655	1237		46
KET-CLRG-10010			383	250		3318	1546		52
KET-CLRG-10012			433	300		3982	1856		58
KET-CLRG-1502	150	70	200	50	198.6	993	482	205	39
KET-CLRG-1504			250	100		1986	965		52
KET-CLRG-1506			300	150		2978	1447		65
KET-CLRG-1508			350	200		3971	1930		78
KET-CLRG-15010			400	250		4964	2412		92
KET-CLRG-15012			450	300		5957	2895		105
KET-CLRG-2002	200	70	218	50	265.9	1330	635	235	55
KET-CLRG-2006			318	150		3989	1905		91
KET-CLRG-20012			468	300		7977	3809		146
KET-CLRG-2502			275	50	366.4	1832	763	275	89
KET-CLRG-2506			375	150		5497	2289		136
KET-CLRG-25012			525	300		10993	4578		207
KET-CLRG-3002	300	70	322	50	456.2	2281	757	310	184
KET-CLRG-3006			422	150		6843	2270		232
KET-CLRG-30012			572	300		13685	4541		303
KET-CLRG-4002	400	70	374	50	559.9	2800	967	365	270
KET-CLRG-4006			474	150		8399	2902		330
KET-CLRG-40012			624	300		16797	5804		421
KET-CLRG-5002	500	70	422	50	730.6	3653	1238	400	401
KET-CLRG-5006			522	150		10959	3713		480
KET-CLRG-50012			672	300		21918	7427		599
KET-CLRG-6002	600	70	433	50	855.3	4276	1477	430	474
KET-CLRG-6006			533	150		12829	4431		565
KET-CLRG-60012			683	300		25659	8862		701
KET-CLRG-8002	800	70	538	50	1176.3	5881	1935	510	741
KET-CLRG-8006			638	150		17644	5806		868
KET-CLRG-80012			788	300		35288	11611		1058
KET-CLRG-10002	1000	70	565	50	1465.7	7392	2709	560	1062
KET-CLRG-10006			665	150		21986	8126		1213
KET-CLRG-100012			815	300		43972	16252		1439
