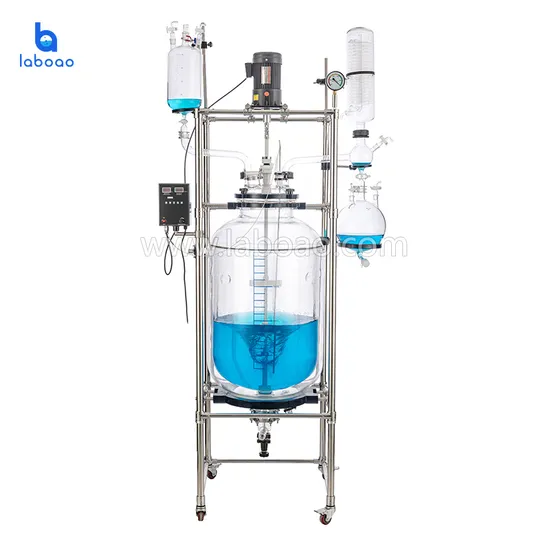

Laboao 200L Lab Vacuum Chemical Glass Lined Jacketed Glass Reactor

Product Description

Product Description
LABOAO 200L Lab Vacuum Chemical Glass Lined Jacketed Glass Reactor
Double-layer glass reactor is a commonly used biochemical instrument. It is widely used in modern fine chemical, bio-pharmaceutical, scientific research and other industries. It can be concentrated, distilled, refluxed, separated and purified under constant speed, constant force and constant temperature. The reaction is the ideal instrument for teaching, experiment, pilot test and production.
The thermostated (high temperature or low temperature) hot solution or coolant is injected through a double-layer reactor sandwich, and the contents of the reactor are heated or cooled at a constant temperature, and uniform stirring can be provided. The material is reacted in the reaction kettle, and the evaporation and reflux reaction of the reaction solution can be controlled, and the kettle lid and the stirring system can be raised as a whole, and the kettle body is rotated by 150 degrees, and the relatively thick material can be directly poured out to facilitate the cleaning kettle. The liquid material can also be discharged from the discharge port of the bottom of the kettle, which is extremely convenient to operate. It is an ideal equipment for modern chemical samples, petrochemicals, sample experiments, biopharmaceuticals and new materials.
Features
1. A full set of glassware with GG3.3 borosilicate glass that is heat/cold/corrosion-resistant.
2. Wide range of temperature operations, from -60°C to 250°C.
3. Solvent-resistant PTFE seal ensure long time durability and operation, sealing is -0.098Mpa.
4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.
5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.
6. Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
7. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials. multi-layer stirring blades is optional.
8. The bottom flange discharge port with a Teflon value, aluminum parts flange fixed.
Product Parameters

Model	LGR-200L
Glass Material	GG-17
Frame Material	304 Stainless steel
Moving mode	Brake type universal corner wheel
Reaction bottle capacity	200L
Jacketed Capacity	28L
Flanged out of the oil circulation port	Low feed high outlet
Reaction bottle cover port	6ports
Discharge port distance to ground	450mm
Temp. range	-80-250°C
Vacuum	0.098Mpa
Stirring speed	0-280rpm
Stirring diameter	15mm
Stirring power	750W
Voltage(V/Hz)	220V/50HZ
Dimension(mm)	1300*900*2400
Packing size(mm)	2300*930*1350
Packing weight(KG)	190

---
