Commercial Heat Pump Water Heaters - Air to Water Heat Pump for School Hotels Ktvs and Foot Baths Hot Water Supply

Product Description

Product Introductions:

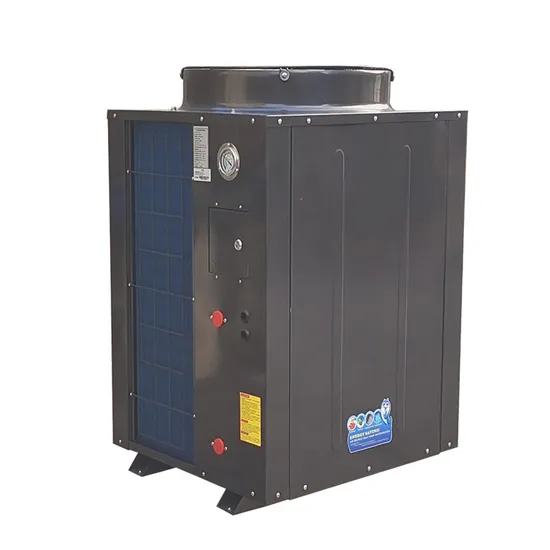

SolarShine's professional heat pump units are equiped with high quality components, which assure very high COP output. Our commercial heat pump unit power ranges from 3Hp-30Hp, heating output power from 11-110KW. They are suitable for many types of large central water heating project for hotel room, school dormitory, factory dormitory, hospital, etc.
Features:
★High-efficiency, Up to 75% energy saving, compared with conventional water heaters such as gas/oil boilers and electricity water heaters.
★Economical, less running cost, only consume a little energy for the compressor working.
★Eco-friendly,no exhaust gas, no waste water drain to harm environments.
★Powder coated steel plate cabinet ( stainless steel cabinet available).
★24 hours timer clock. No human attendance is required.

Technical Specification of KGS series heat pump
Model	Measure	KGS-3	KGS-5	KGS-7	KGS-10	KGS-15	KGS-20	KGS-25	KGS-30
Nominal Heating Capacity	KW	11.2	18.4	26.0	36.8	52.0	73.6	92.0	104
Input Power	KW	2.8	4.6	6.5	9.2	13	18.4	23	26
Voltage	/	220/ 380V	380V/3N
Rated/Max. water temperature	ºC	55ºC/60ºC
Compressor quantity	Set	1	1	1	2	2	2/4	2/4	2/4
Heat ex-changer (Condenser)	/	High efficiency copper coil tubes in can type condenser
Evaporator	/	U shape	U shape	U shape	L Shape	V Shape	V Shape	V Shape	V Shape
Fan motor power*quantity	W	90	250	250	250*2	550*2	600*2	630*2	600*3
Refrigerant	R410A /R22 (R32 can be produced according to customer's request)
Noise	dB	55	60	65	80	80	80	80	80
Connection	/	DN25	DN25	DN25	DN40	DN40	DN50	DN50	DN65
Fluid rate	m3/h	2	3.5	5	7	10.5	14	17.5	21
Ext. dimension (L/W/H)	MM	695	760	760	1500	1500	1850	2000	2350
	MM	655	690	690	690	690	1000	1100	1100
	MM	850	1100	1100	1080	1080	1940	1920	1860
Net. Weight	KG	80	120	135	280	360	560	600	680
Remarks: Above thermal performance parameters are refer to dry bulb temperature of 20 ºC / wet bulb temperature of 15 ºC, basic water inlet temperature of 15 ºC, and water outlet temperature of 55 ºC. Heating capacity of the unit will fluctuate due to different climatic conditions or climate changes, as well as the floating changes of working conditions.

What're the advantages of air to water heat pump?
Because the air energy heat pump mainly uses the heat in the air for heating, not directly for "electricity heat" conversion, plus the air energy heat pump does not use gas, oil, coal and other fuels, the heating process has no open fire, no emissions, so there will be no fire, explosion, poisoning, electricity leakage, gas leakage and other safety hazards when using the air energy heat pump.
At the same time, it is precisely because the air energy heat pump does not directly use electricity to heat cold water, so the heating efficiency of the air energy heat pump is as high as 400%, that is, 1kW electricity generates 4kw heat energy, and heating a ton of tap water (15 degrees to 25 degrees) only needs about 11 degrees electricity.
Features:
1. Air source heat pump is energy saving device.
2. Regular constant temperature and pressure hot water supply to ensure students' comfort.
4. The whole system is fully automatic control operation, without special guard.
5. The whole hot water pipe network can be designed with a pressurized return water system, only need 5 seconds to get hot water after turn on the tap.
6. The heat pump has high stability, safe use, low operation cost and maintenance cost.
7. Environmental protection, safety.
--------------------------------------------------------------------------------------------------------------------------------------------- About us:
SolarShine Renewable Energy Technology Co., Ltd, is an professional manufacturer and developer of solar thermal + heat pump heating / cooling products and systems, we supply professional and high quality products, systems and professional services for our customers from more than 30 countries and regions.
Our main products and service covering:
*Domestic, swimming pool and commercial heat pump water heater
(Air source / water source and geothermal source)
* Domestic and industry water chiller (cooler)
* Hot water storage tank, buffer tank.
* Solar thermal collectors and solar water heater
* OEM and ODM service
* System design, technology support at water heating, cooling, and HVAC industry.

---
