Shacman 8m3 10m3 12m3 Cement Construction Engineering Concrete Mixer Truck

Product Description

Product Description

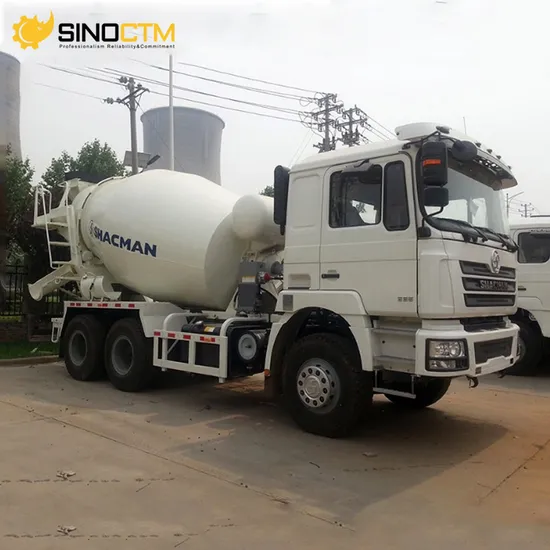

SHACMAN New Design mixer Truck
Our Main Products Heavy Trucks and Construction Machinery. include tractor trucks, dump trucks, trailer truck,Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader. we can supply these for our clients with good quality and competitive price, because we get directly support from factory.
1. Heavy duty truck chassis2. Reinforced body structure with proven telescopic tipping gear3. Combination of ride comfort and power4. Key pressure point reinforced cargo body5. Robust powertrain can help you tackle any challenge at the construction site6. Stable and reliable under-body tipping device ensures low-gravity hoisting. Product Description

Chassis parameters
Chassis model			SX5256GJBDR434T	Chassis brand	SHACMAN
Overall dimensions			8270x2495x3250mm	Wheel base	5100+1400mm
Front/rear wheel track			2036/1850/1850mm	Front/rear suspension	1525/1770mm
Approach/departure angle			20/19°	Maximum speed	77km/h
Cab	Configuration		Delong F3000 flat top cab, hydraulic seat, four-point hydraulic suspension cab, air conditioning, electric window machine, manual flip, F3000 Cooling System, Domestic Left-hand Steering Machine, Iron Storage Tank, Foyer Air Filter, Iron Bumper, 165Ah Battery, ETA Circuit Breaker, SHACMAN logo, all English identification.
	Color		White,other color is optional
Engine	Model		WP12NG350E40
	Emission		Euro 4
	Type		6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine
	Rated power		350hp,rated power speed 2200rpm
	Displacement		11596ml
	Max.torque		1400N.m
	Bore x stroke		126x155mm
Tire	Size		12.00R20 steel wire tire
	Number		10+1 nos
Clutch	Domestic φ430 diaphragm clutch
Frame	850 × 300 (8 + 7)mm
Gas tank	4*200L+4*80L
Front axle	MAN, 7.5 tons disc type
Rear axle	MAN,16 tons casting bridge,main reduction ratio 5.262
Drive form	6X4
Suspension	Multi leaf springs, four bolts
Rated voltage	24V,DC
Transmissions	gearbox 9JS119, 9 speed forward 1 reverse.
Steering device	Power assisted steering,steering machine
Steering wheel	Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Concrete mixer truck structure parameters
Mixing capacity(m³)	12		Color and Logo	Optional
Feeding speed (m³/min)	≥5		Discharge speed(m³/min)	≥3
Discharge residual rate	≤0.5%		Slump scope(mm)	50-210
Water tank capacity(L)	300		Water pressure(Mpa)	0.35-0.38
Tank material	5mm alloy steel		Tank front head	8mm alloy steel
Reducer	Italy Bonfiglioli		Hydraulic motor	Germany REXROTH
Hydraulic pump	Germany REXROTH		Radiator	KAIPENG
Standard configuration	chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
	12m3	Italy Bonfiglioli reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material)

Main products
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc.
Heavy Trucks on board for shipping
FAQ
Q1. What's your MOQ?
A1. One unit trailer or truck.
Q2. What is your terms of payment?
A2. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of shipment?
A3. Generally, we ship our truck by ro-ro ship , bulk cargo vessel, container etc. spare parts are packed in wooden cases, shipped by containers
Q4. What is your terms of delivery?
A4. EXW, FOB, CFR, CIF
Q5. How about your delivery time?
A5. It will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Do you test all your goods before delivery?
A6. Yes, we have 100% test before delivery.
About Us
1 Factory price, more competitive than agent price.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3 working days or 5 working days, and all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
