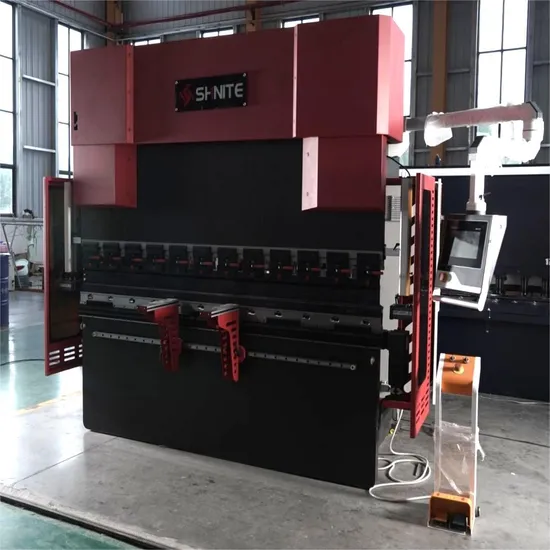

Shinite Brand Press Brake for Stainless Steel Carbon Steel Bending Machine OEM Manufacturer

Product Description

Product Description
The CNC press brake uses the mold( general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheetmetal processing. It is widely used in sheet metal bending,such as automobile air craft manufacturing light industry shipbuilding,container, elevator railway vehicles and other industries.Detailed PhotosHYDRAULIC SYSTEM Germany Bosch-Rexroth integrated hydreulic system block, hydraulic transmission with high reliablity, integrated hydreulic systemcan effectively alleviate problems caused by leakag of hydraulic fluid. QUICK CLAMP SYSTEM • Safe and fast tool change • Can be used without modifying Europe type punches • Red Button- Release the Punch Toolings easily • Front clamp - vertical tool change • Rear clamp - horizontal tool changeExpress Crowning System The Express Crowning system helps control deflection or "the canoe effet" in press brake applications over 4 ftlongwith quick, repeatable crowning that is precisely adjusted by a basic hand crank and digital readout or an electric motor driven by the CNC machine control.

Type	Nominal Force	Worktable Length	Poles Distance	Throat Depth	Cylinder Stroke	Opening Height	Power	Dimension
	(KN)	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	L*W*H(mm)
30T/1600	300	1600	1295	200	80	370	3	1650*1100*1900
50T-1600	500	1600	1295	260	100	380	5.5	1650*1150*1950
50T/2000	500	2000	1680	260	100	380	5.5	2100*1200*2200
63T/2500	630	2500	2000	280	120	380	5.5	2600*1350*2300
63T/3200	630	3200	2600	280	120	390	5.5	3300*1350*2300
80T/2500	800	2500	2000	280	120	390	7.5	2600*1400*2350
80T/3200	800	3200	2600	280	120	390	7.5	3300*1400*2350
100T/2500	1000	2500	2000	320	140	410	7.5	2600*1450*2450
100T/3200	1000	3200	2600	320	140	410	7.5	3300*1450*2450
100T/4000	1000	4000	3200	320	140	410	7.5	4100*1450*2450
100T/5000	1000	5000	3900	320	140	410	7.5	5100*1450*2450
125T/3200	1250	3200	2600	320	140	410	11	3300*1450*2450
125T/4000	1250	4000	3200	320	140	410	11	4100*1450*2450
160T/3200	1600	3200	2600	380	200	460	15	3300*1650*2850
160T/4000	1600	4000	3200	380	200	460	15	3300*1650*2850
160T/4500	1600	4500	3400	380	200	460	15	4600*1650*2850
200T/3200	2000	3200	2600	380	200	460	15	3300*1750*3200
200T/4000	2000	4000	3200	380	200	460	15	4100*1750*3200
250T/3200	2500	3200	2600	440	200	460	20	3300*1900*3200
250T/4000	2500	4000	3200	400	200	460	20	4100*1900*3200
250T/5000	2500	5000	3900	400	200	460	20	5100*1900*3200
300T/3200	3000	3200	2600	420	250	480	19	3300*2200*3300
300T/4000	3000	4000	3200	420	250	480	23	4100*2200*3300
300T/5000	3000	5000	3900	420	250	480	26	5100*22000*3300
300T/6000	3000	6000	4900	420	250	480	30	6100*2200*3300
400T/4000	4000	4000	3200	420	300	500	26	4100*2600*3500
400T/5000	4000	5000	3900	420	300	500	30	5100*2600*3500
400T/6000	4000	6000	4900	420	300	500	36	6100*2700*3600
500T/4000	5000	4000	3200	450	350	550	37	4100*2800*3800
500T/5000	5000	5000	3900	450	350	550	46	5100*2800*3800
500T/6000	5000	6000	4900	450	350	550	55	6100*2800*3800
600T/6000	6000	6000	4900	500	350	550	60	6100*2800*3800
More types press brake, please contact us, will give you best solution

Control System*Control function, support X,Y,R axis servo axis control, C axis hydraulic/mechanical compensation two modes optional* Built-in machine control logic, hydraulic valve group free logic configuration, I/O port free configuration function, simplifies the programming calculation of external line
* Accurate Angle function, built- .in mold base and material list, improved the calculating precision of
* Standard USB interface, which can realize parameter program a key
* Online backup and system software up grade Standard EDS/Pro Net servo series, superior performance, stable quality
* Safety protection, collision detection and collision avoidance R axis positioning function
* Built-in parameters a key to backup and restore function, reduce service costs
* Micro switch according to the keypad, stable and reliable, long lifeCompany Profile
For more details, please contact me
Mobile Phone:+8618055569949
Company Address:East Industrial Park,BoWang Town,Maanshan City,AnHui Province,China

---
