Gas Generation Equipment 300kw 400kw 500kw 600kw 700kw 1000kw Natural Gas Genset Cogeneration Gas Generator

Product Description

Gas Generation Equipment 300kw 400kw 500kw 600kw 700kw 1000kw Natural Gas Genset Cogeneration Gas Generator
Core Features: Manufacturer supply since 2008
Power supply range:20kw - 2000kw
Parallel system available for over 1 set generator
Standard component and assembly
Multi-option of control panel
With CE and ISO certificate
Specification: Fuel: natural gas, CNG,LNG,methane,biogas.

Model Number	LHNG300-1000
Brand Name	Lvhuan
Rated Power	300-1000kw
Rated Speed	1000/1500rpm
Rated Frequency	50/60 Hz
Rated Voltage	400/230V
Phase	AC 3 phase 4 wire
Starting system	24V DC electric motor
Cooling method	water cooler
Lubricant method	pressure and splash
Isolation class	H
Protection	IP23
Power Factor	0.8 lagging
Exciting method	Brush less
Voltage Stability	≤±2%
Voltage Transient	≤±10%
Voltage Stable time	≤1 s

Engine Capacity	1.81-95L
Cylinder Number	2-16
Cylinder Diameter	100-190mm
Range	115-210mm
Heat consumption	≤9.8mj/kw.h
Oil consumption	≤1.63g/kw.

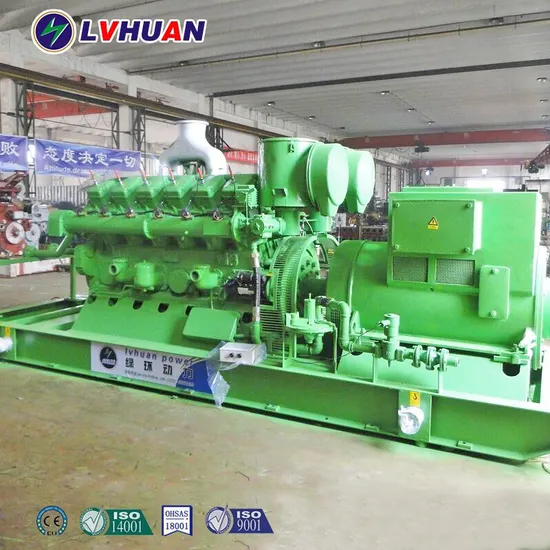

Natural gas generator photos:
Features: 1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality
3.Expansion fitting combined with shrinking fitting give high tightness to the system
4.Safety guarantee form electromagnetic valve as well as back-fire relief valve
5.Residual heat CHP recycle system available for choice.
Supply details Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Visitors form oversea:
FAQ 1.How to choose the right model?
A: It depends on real output power, Voltage, Frequency and gas type.
2.What is the oil consumption and capacity per hour?
A: 1.0g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce3.5-4.0kw/h power.
The capacity depends on gas energy.

3. What is the warranty? A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. But, a set of spare parts will be shipped together with machine free.
4.. How is the service?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.Any questions, please contact me freely.

---
