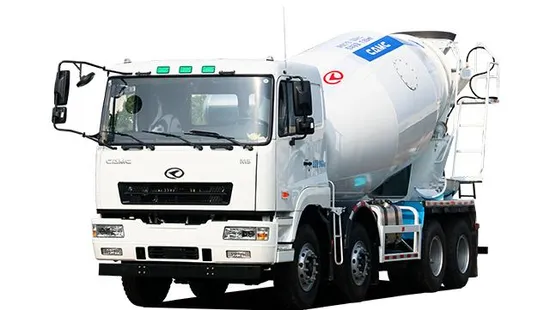

New Energy Electric Car Mixer Truck

Product Description

New Energy Mixer TruckHanma series new energy moxer truckEnvironmentally friendly and efficient, leading the new green infrastructureIntegration of charging and battery replacement, high operating efficiency
Advanced three-battery quality, cruising range of up to 250 kilometers, quick battery replacement in 3-5 minutes, and a one-hour full charging solution to improve operational efficiency.
Low cost of use, high operating income
The cost of electricity is low, the cost of daily maintenance of the vehicle is low, the whole life cycle, and the economic benefits are outstanding
Green and environmental protection, policy advantages are highlighted
Zero emission, not restricted by environmental protection policies, enjoy priority driving right

New energy mixer truck
Product seires	282kWh	282kWh	282kWh	350kWh
Car model	HN5311GJBB36C1BEV	HN5314GJBB36C5BEV	HN5312GJBB36C5BEV	HN5310GJBB36C1BEV
Driver mode	8×4	8×4	8×4	8×4
Distance (mm)	1850+3100+1350	1850+3500+1350	1850+3500+1350	1850+3100+1350
Tank capacity (m3)	6.67	6.58	6.44	6.47
Weight (kg)	16300	16800	16500	16300
Load weight(kg)	31000	31000	31000	31000
Drive axle	11T(13T)	13T	13T	11T(13T)
Moror type	Permanent magnet synchronous	Permanent magnet synchronous	Permanent magnet synchronous	Permanent magnet synchronous
Motor rated, peak power/(kW)	220/360	220/360	220/360	220/360
Motor rating, peak torque/(N.m)	1500/2100	1500/2100	1500/2100	1500/2100
gearbox	9AMT	9AMT	9AMT	9AMT
Power Battery	(Lithium iron phosphate)	Lithium iron phosphate	(Lithium iron phosphate)	(Lithium iron phosphate)
Power battery parameters	618.24 V,281.92kWh	618.24V,281.92kWh	618.24 V,281.92 kWh	579.6 V,350.08 kWh
0~50km/h(s)	20	20	20	20
maximum speed(km/h)	85	85	85	85
Maximum grade(%)	30	30	30	30
recharge mileage(km)	130~150	130~150	130~150	130~150
Power on(/)	/Charging and battery replacement	/Charging and battery replacement	Charging and battery replacement	Charging and battery replacement
battery swap time	<6min,1h	<6min,1h	1h	1.5h

---
