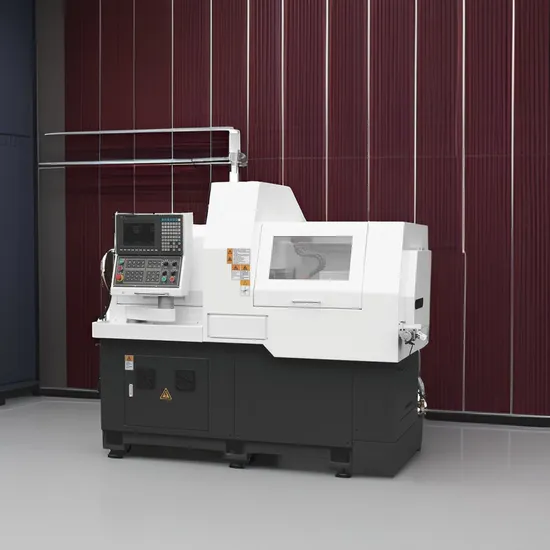

China Swiss Type Automatic Lathe Swiss Lathe Swiss CNC Lathe (BL-CSL205/265)

Product Description

China Swiss Type Automatic Lathe/Swiss Lathe/Swiss CNC Lathe(BL-CSL205/265)
- Single spindle,total 3 axes
- Adopt TAIWAN technology,most parts adopt GERMANY/JAPAN/TAIWAN brand
- Adopt meehanite resin sand cast iron, after aging treatment, small distortion, good heat stability and high rigidity
- Adopt high precision built-in electro-spindle,NSK/NTN super high precise angle contact ball bearing, achieve spindle's high rigidity and good precision retention,spindle flop≤2μm
- Adopt TAIWAN HIWIN brand high precision ball screw and linear guideway
- Adopt gang type tool, can achieve turning/milling/drilling etc combined machining by side-mounted live tool and C axes
- After mount automatic bar feeder, can realize automatic machining
- Suitable for complex, small-sized,precise,slender axles workpiece machining

Item		Unit	BL-CSL2005	BL-CSL2605
Max. machineable bar dia.		mm	Φ20	Φ25
Main spindle bore		mm	Φ25	Φ27
Max. machineable length	Fixed guide bushing	mm	200
	Rotary guide bushing	mm	180(one time feed)
	Guide bushless	mm	50
Max. face drilling dia.		mm	Φ10
Max. face tapping dia.		mm	M8
Main spindle max speed		rpm	6000
Main spindle motor		kw	4.2
Main spindle index		/	C axes(continuation)
Back spindle max speed		rpm	6000
Back spindle motor		kw	4.2
Back spindle index		/	C axes(continuation)
Radial type live tool max speed		rpm	5000
Rapid moving speed(X1/Y1/Z1/X2/Z2)		m/min	20/24/24/24/24
Repeat positioning accuracy		mm	≤0.003
O.D. tool		mm	5(12)
Main spindle side axial drilling tool(fixed type)		mm	5(ER16)
Main spindle side radial type live tool		mm	2(ER11)+2(ER16)
Back spindle side back drilling tool(fixed type)		mm	4(ER16)
Coolant pump		kw	0.46
Overall size		mm	2300×1300×1750
N.W.		kg	2500	2600

Main parts list:

Item	Brand
CNC controller	TAIWAN-SYNTEC
Servo electro-spindle	Own-made
Spindle driver	TAIWAN-SYNTEC
Spindle encoder	TAIWAN-SYNTEC
Feeding axes motor&driver	TAIWAN-SYNTEC
Spindle bearing	JAPAN-NSK/NTN P4 class
Ball screw bearing	JAPAN-NSK/NACHI
Ball screw	TAIWAN-HIWIN
Linear guideway	TAIWAN-HIWIN
Lubrication system	JAPAN-HERG
Main electricity parts	FRANCE-SCHNEIDER
Pneumatic parts	TAWAN-AIRTAC
Lock nuts	TAIWAN-YINSH
Shaft coupling	GERMANY-KTR

Standard configuration:
- SYNTEC 22TB CNC controller
- Single spindle
- Parts catcher(without convey belt)
Optional configuration:
- High pressure coolant system
- Oil mist collection system
- Automatic chip conveyor
- Automatic bar feeder
