Crimping & Curving Machine 202108

Product Details

Product Details

Product Description

Product Description

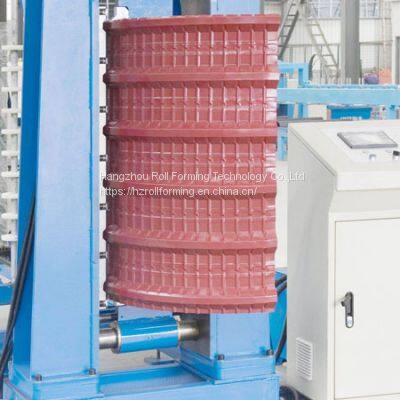

This machine is to curve formed panel through punching.
Technical Parameters and Components of Crimping&Curving Machine
Technical parameters
Profile yield strength
Max. 350Mpa
Material thickness
0.3-0.7mm
Min curving radius
Min 500mm
Speed of punching
About. 2m/min
Punching mould material
No.45 steel with chrome coated
Shaft material
High grade No.45 steel after heating and quenching
Motor power
Hydraulic motor about 5.5Kw, feeding motor about 1.1 Kw (confirm after final design)
Components
Transmitting device
1 set
Punch curving device
1 set
Hydraulic system
1 set
Control system
1 set

Service and Terms of Crimping&Curving Machine
Prompt Goods
Most of models are in stock.
Fast Delivery
30 days after receipt of payment and technical agreement
Manufacturer
All equipments are manufactured In-house.
Warranty
20 months
Service
1. Life long service;
2. All projects include engineering, drawings and project management and are treated similarly as a new metal forming equipment order.
3. quick maintenance and spare parts service
After-sales Service
1. 7x24h before & after service team;
2. Experienced Engineers team for overseas market to handle all your troubleshooting and service needs for your roll forming, coil processing and tube equipment.
Payment Terms
T/T, L/C
30% down payment upon order confirmation; balance before shipment
Place of Origin
Zhejiang, China (Mainland)
Packing
Standard and careful export packing
LOADING SIZE
Normally need 1x 20GP container.
