Prefab House Chicken Poultry Farm Equipment for Broiler

Product Description

Good Service for Project
Competitive service for poultry farm chicken house project
U Best Husbandry equipment Co., Ltd adopt advanced European and US technology in environmental ventilation concept,undertakes to design large & medium farm project and old farm renovation project. We will provide customized design and solutions continuously to satisfy your all requirements.
1. Chicken Equipment: produce and supply first-class Quality poultry equipment with Good Price;
2. Poultry Farm: select location, design and construction preparation guidance;
3. Layout Drawing: make layout drawing of our equipment to guide you build house and install equipment;
4. Equipment Installation: if you need, we send our engineer to your farm for guide of equipment installation;
5. Training: we can train your workers to operate our equipment and raise poultry;
6. After-sales service: free consultancy and prompt reply to questions from clients.

Product Description

Item	Description	Item	Description
01	Main Feed Line (Storage) system	06	Environment Control System
02	Automatic Pan Feeding Line	07	Heating System (Optional)
03	Automatic Nipple Drinking Line	08	Fogger Spraying and Disinfection System (Optional)
04	Ventilation System	09	Curtain for Two Side Walls (Optional)
05	Cooling Pad System	10	Plastic Slat Floor (Optional)

Product Parameters

1.Main feeding line system
By this system, chicken feed can be conveyed from the silo or manpower hopper into each feeding line in your chicken farms.
Silo /manpower hopper is the beginning of main feed line.
There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery.
Feeding capacity: 1400KG / h, Maximum feeding length:60m.
Radius of bending pipe: R1500 (inclinable angle: 30 degrees).
Main feed line auger: import from South Africa
Feed level sensor: import from Germany IFM

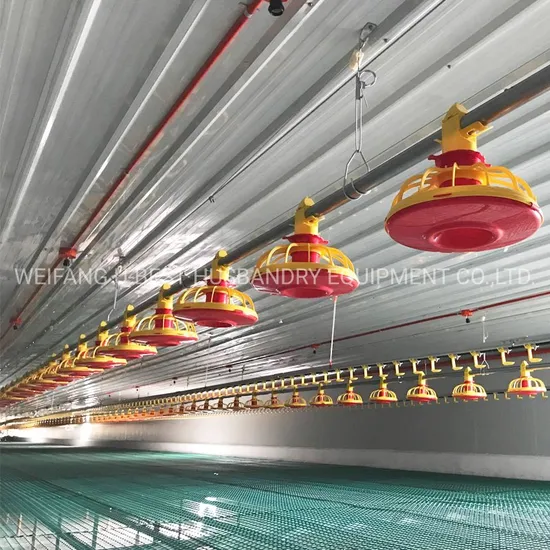

2.Pan feeding line system
Covey feed from vice hopper into each feed pan automatically.
Taiwan Brand driving motor;
Hot-dip galvanized vice hopper;
Pan feeding line with South Africa Spring Auger and Germany Sensor;
Suspension and lifting system convenient to adjust the feeding line height by winch.

3. Nipple drinking line system
This system can provide fresh and clean water for poultry which is crucial for the growth of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easily.
Bigdutchman/Plasson/Lubing type for you to choose.
Water front system;
Water pipe with nipple drinker and drip cup;
Pressure regulator and water-level display;
4. Ventilation system
This system controls climate conditions, fresh air, humidity and temperature in poultry shed. It is vital for growing birds, including air inlets and ventilation fan.
1) Air Inlet
High quality engineering material ABS production, high strength, strong anti-aging, can be directly cleaned with high pressure cleaner.
2) Ventilation Fan
24'' and 36'' fans are used for ventilation to provide fresh air to the poultry house.
50'' fans equipped with cooling pads to cool the house.
Box fan, Cone fan, Fiberglass cone fan for your choice.
5.Cooling pad system Cooling pad and fan, the longitudinal ventilation and cooling combination is the most economic and effective summer cooling system for poultry house.
Color: black, yellow, green, red, etc;
Thickness: 100mm, 150mm; Height: 1660mm, 1960mm, 2160mm (with frame);1500mm, 1800mm, 2000mm(without frame)
Frame: Aluminium frame high strength, good corrosion resistance, even water distribution, compact structure, beautiful and practical. Galvanized steel frame for your option, lower price than aluminium frame
6.Automatic environment control system
This system saves labors and resources under the condition of assuring a optimum growth environment for poultry chickens. Environment controller along with temperature is imported from Agrologic in Israel, which can set an optimum working mode according to the local climate and raising environment.
The Most Advanced Control System not only has the above function, but also could be done to do chicken feed weighing/chicks weighing/connecting to computer or personal phone.
7. Heating system (Heater)
Heating poultry house when it is needed to satisfy the temperature demand of chickens at different growth stage. Poultry gas space heater, diesel tank heater, infrared gas brooder and hot-blast heater for your choice.
Project Design
Certifications
Welcome to contact us for any questions. Let's make poultry raising simple and efficient!
To start your farming business easily, don't hesitate to contact us any more.

---
