US$16.14-18.24
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
DP-23 DP-58 DP-88 DP-812 DP-816
Operation Condition
Indoor
Usage
Protection, Measurement
Winding Form
Small Fixed Type
Insulating Medium
Common Insulating Materials
Magnetic Circuit Structure
Single Stage Type
Voltage Transformation Principle
Electromagnetic Type
Antistop
Split Core Current Transformer
Rated Test Voltage
3kv AC (1min)
Secondary Current
5A / 1A
Rated Insulation Voltage
AC 0.72kv
Working Temperature
-10~+50
Continuous Overload
1.2in
Transport Package
Export Standard Carton Box
Production Capacity
100000 PCS/Year
Packaging & Delivery
Package Size
15.00cm * 13.00cm * 5.00cm
Package Gross Weight
0.500kg
Product Description

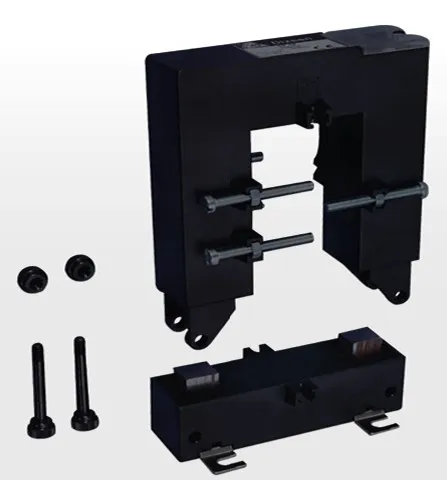

DP Series High Accuracy Split Core Current Transformer DP-23
Description
The DP Series current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or busbar circuit.The connection of conventional CTs usually requires the interruption of the primary side current to pass cables or busbar through the transformer core to connect such cables to the primary terminals.
Feature
Two installation methods: Panel / Busbar.
Wide inner window,allowing clamping of big cables or busbar
Wide range of sizes to accommodate all the existing installation
Primary current from 5A to 5000A
Specifications
| Rated frequency | 50Hz/60Hz |
| Rated test voltage | 3kv AC (1min) |
| Rated short-time thermal current (lth) | 60in |
| Rated dynamic current (ldyn) | 2.5lth |
| Rated voltage (Um) | 0.72kv AC |
| Continuous overload (ld) | 1.2In |
| Operating temperature | -10°C~50°C |
| Housing self-extinguishing class | VO |
| Safety factor | FS 5 |
| Secondary current | 5A/1A |
Technical data and dimension
| Type | Ration (A) | Rated power (VA) |
| Class: 0.5 | Class: 1.0 |
| DP-23 | 100/5 | - | 1.5 |
| DP-23 | 150/5 | - | 1.5 |
| DP-23 | 200/5 | - | 1.5 |
| DP-23 | 250/5 | - | 1.5 |
| DP-23 | 300/5 | 1.5 | 2.5 |
| DP-23 | 400/5 | 2.5 | 3.75 |
|
Product detail
Our Services
| 1. Prompt reply: Any inquiry or questions would be replied within 24 hours. |
| 2. Quality Product: Manufacture company, each of the products is tested and calibrated. |
| 3. Hospitality: Offer smiling service and your visiting is highly welcomed |
| 4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty. |
Trade Information
| Trade Terms | FOB,CIF,CFR,EXW |
| Payment terms | T/T,L/C,Western union,Paypal,Escrow,MoneyGram |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
>>
