Basic Pneumatic and Hydraulic Training Device School Laboratory Equipment Pneumatic Trainer Kit Educational Equipment

Product Description

Basic pneumatic and hydraulic training device school laboratory equipment
PN: GTPHT-0002

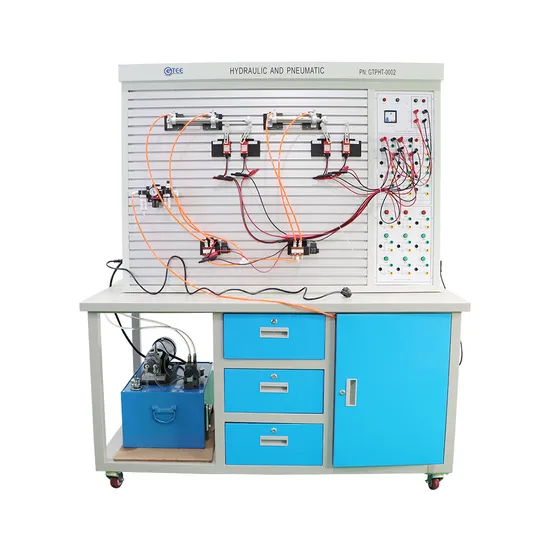

Picture for reference:
Technical parameter
Dimension: About 1500mm × 700mm × 1720mm
Power supply: input AC220V, 50Hz, output DC24V, AC220V
Weight: about 300kg
Product description
The experimental device uses double-sided structure, is an experimental table provides
places for doing pneumatic and hydraulic test experiment for two groups of four students. It can simultaneously do double-sided comprehensive pneumatic and hydraulic experiments, optimizing and sharing resources and improving products' performance. Its overall structure is simple and practical. It uses transparent hydraulic components for easy understanding of the work principle of the hydraulic system.
Product composition
Pneumatic:

No.	Name	Specs	QTY
1	Experimental bench		1 pcs
2	Components installation panel	Relay control unit, Signal input unit,	1 pcs
3	Air compressor	10L, 0.7Mpa	1 pcs
4	Single-acting cylinder	MSAX25×100-CA	1 pcs
5	Dual-acting cylinder	MAX25×100-CA	2 pcs
6	Oil-water separator	AC2000 Triple pieces	1 pcs
7	Reducing valve (with pressure gauge)	AR2000	1 pcs
8	5/2 Handle shuttle valve	4H210-08	1 pcs
9	5/2 Single solenoid shuttle valve	4V210-08(DC24V)	2 pcs
10	5/2 Double solenoid shuttle valve	4V220-08(DC24V)	1 pcs
11	5/3 Double solenoid shuttle valve	4V230-08(DC24V)	1 pcs
12	5/2 Single pneumatic control	4A210-08	2 pcs
13	5/2 Double pneumatic control	4A220-08	2 pcs
14	2/2 knob valve	MOV-02	1 pcs
15	2/2 button valve	MOV-03A	1 pcs
16	"OR" gate shuttle valve	ST-08	2 pcs
17	Quick exhaust valve	QV-08	2 pcs
18	One-way throttle valve	KLA-08	2 pcs
19	One-way throttle valve (install on the cylinder)	JSC601	7 pcs
20	One-way valve	1/4	2 pcs
21	Sequence valve	Designed and made	2 pcs
22	Air capacitor	Designed and made	1 pcs
23	Six-way valve	Designed and made	2 pcs
24	Magnetic switch	Designed and made	4 pcs
25	Tools		1 set
26	Accessories		1 set

Hydraulic:

No.	Name	Specs	QTY
1	Experimental bench		1 pcs
2	Components installation panel	Relay control unit, Signal input unit,
3	Drag motor and speed controller	400W, 1500rpm	1 set
4	Gear oil pump	10L/min, 0-1.6Mpa	1 pcs
5	Fuel tank		1 pcs
6	Auxiliary fuel tank		1 pcs
7	Cylinder stopper plate		2 pcs
8	Cylinder (with stroke collision block)		2 pcs
9	Spring return cylinder		1 pcs
10	Pressurized cylinder		1 pcs
11	Check Valves		2 pcs
12	Pilot Operated Check Valves		2 pcs
13	Overflow valve		2 pcs
14	Throttle valve		1 pcs
15	Speed control valve		2 pcs
16	Sequence valve		2 pcs
17	Pressure reducing valve		1 pcs
18	2/2 solenoid valve		1 pcs
19	4/2 solenoid valve		2 pcs
20	4/3 solenoid valve	O type	1 pcs
21	4/3 solenoid valve	H type	1 pcs
22	4/3 solenoid valve	M type	1 pcs
23	5/3 solenoid valve		1 pcs
24	Pressure relay		1 pcs
25	Limit switch (normally closed)	LX19-001	2 pcs
26	Limit switch (normally open)	LX19-001	2 pcs
27	Pressure gauge	0-1.0Mpa	3 pcs
28	Three way		2 pcs
29	Four way		2 pcs
30	Tools		1 set
31	Accessories		1 set

Training course
Pneumatic: The reversing loop of single acting cylinder The reversing loop of double acting cylinder Single acting cylinder speed control loop Single phase speed control loop of double acting cylinder Double acting cylinder speed control loop Speed switching loop Buffer loop Secondary pressure control loop Counting loop Delay loop Interlocking loop Single cylinder and single reciprocating control loop Single cylinder continuous reciprocating action loop Sequential action loop of a straight cylinder and a rotating cylinder Multi cylinder sequential working loop Double cylinder synchronous action loop Four cylinder linkage loop Unloading loop The application loop of the "OR" gate shuttle valve The application loop of the fast exhaust valve High and low voltage switch over control loop Overloading protection loop Hydraulic: The reversing loop by using reversing valve The locking loop by using "O" functional reversing valve The locking loop by using hydraulic controlled one-way valve Pressure setting loop Two stage pressure loop Reducing loop by using reducing valve Boost loop by using pressure cylinder Unloading loop by using reversing valve The oil inlet throttling speed regulating loop The oil return throttling speed regulating loop
Packing&Shipping
Solid plywood box and normally ship by sea, but if the size is not big, also by air, FedEx or DHL, TNT and so on.
Company Profile
Guangzhou Guangtong Educational Equipment Co.,LTD is a well-known high-tech company, we participate in many international educational tenders and help our customer win the tender.
We are specialized in development and manufacturing of professional Educational Equipment including automotive teaching equipment, air conditioning and refrigeration teaching equipment, electrical and electronic teaching equipment, lift teaching, solar energy trainer, electric car training device and other vocational training equipment etc.
GTEE is located in Baiyun District, Guangzhou City and adjacent to Guangzhou Baiyun International Airport.
With our several years of design, development, manufacturing and international service experience and expertise, GTEE is growing up and developing very fast. We continuously focus on providing high quality products with competitive price and reliable after sale services for our overseas customers. We will response to our customers within 24 hours after get the feedback and requirements.
Show Room:
Customer Photos:
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: How long is your delivery time?
A: Depends on product quantity and stock. Please check with our sales team.
Q: What are your terms of payment?
A: Payment<=5000USD, 100% in advance.
Payment>=5000USD, 50% T/T in advance, 50% T/T balance before shipment.
Q: Do you offer aftersales support ?
A: Yes, of course, we will provide training materials together with the device, and also we can provide on-site training and installation if customer request. We also have technical engineer for online or remote support, and if within warranty, products parts damaged due to our quality problems, we will send parts via DHL to you for replacement for free as we seek long term cooperation with customers.
Q: How to have exclusive sales rights of GTEE?
A: Place order to GTEE, when the order amount reach certain level, GTEE and customer will negotiate about exclusive rights.
Or send your company profile to GTEE, after GTEE evaluation, start from general agents and gradually become exclusive agent.

---
