High Precision Fu5 PRO CNC 5-Axis Simultaneous Machining Center

Product Description

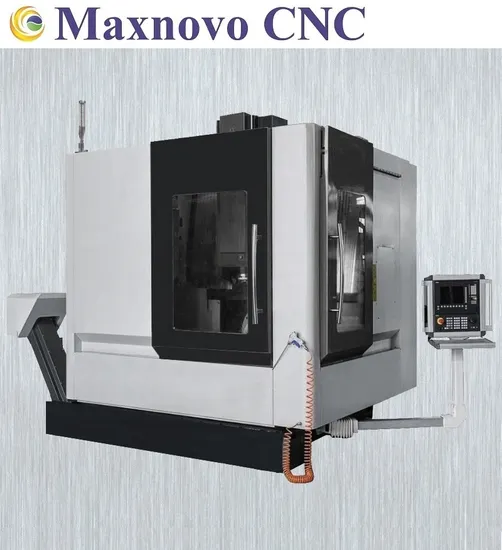

MM-FU5 PRO -- High Precision CNC 5-Axis Simultaneous Machining Center -- MAXNOVO MACHINE
This kind of MM-FU5 PRO is High Precision CNC 5-Axis Simultaneous Machining Center with SIEMENS Control System which is been made in ISO9001 factory with CE Safety Certification. Such Versatile 5-Axis Simultaneous Machining Center is the right solution to increase productivity and precision in manufacturing.
Product Description

High Precision CNC 5-Axis Simultaneous Machining Center with SIEMENS Control System Ideal For Powerful Complete Machining

Main Feature :
Convincing Arguments: Quality, Efficiency and Price -Cradle Type 5-Axis Simultaneous Rotary Table
-Powerful Main Spindle with speeds up to 12000 RPM
-High Precision Linear Guides on all Axes
-High-torque Servo-Drives on all Axes
-Precision Ground, Pre-load, High-Performance Ball Screws on all Axes
-High Rigidity of Machine Body ensures Excellent Quality and Longer Life
-Heavy Duty Version
-High Productivity
-Disc Type Automatic Tool Changer with 24-Stations
-Automatic Chip Conveyor ensures efficient chip discharge
-Automatic Central Lubrication System
-Telescopic Guide-way Cover
-Large Pre-loaded Bearings ensure radial stability during heavy-duty machining operations
-Machine Lamp in Work Space
-Large, Surface Treated, Solid Machine Structure
-EMC Electromagnetic Compatibility
-FANUC CNC Control System is optional
-Certificate of Original (CO, FORM A, FORM E, FORM F)

Product Parameters

Technical Data :

Product Name :	High Precision 5-Axis Simultaneous Machining Center
Product Item :	MM-FU5 PRO
Control System :	SIEMENS 840D SL
Machine Data
Table Size :	Ø 650 mm
Table Load Capacity :	300 KGS
Spindle Speed :	12000 RPM
Spindle Drive Method :	Direct Connection
Spindle axis-to-table surface Distance :	200 - 600 mm
Spindle Taper :	BT40
T-slots (number / width / distance) :	7 piece X 18 mm X 100 mm
Travels
X-axis Travel :	700 mm
Y-axis Travel :	450 mm
Z-axis Travel :	400 mm
B-axis Rotating Swivel Angle :	± 110 deg.
C-axis Rotating Swivel Angle :	360 deg.
Feed
Rapid Feed (X / Y / Z-axis) :	24 / 24 / 24 m /min
Cutting Feed (X / Y / Z-axis) :	10 / 10 / 10 m /min
Max. Rotating Speed (B / C-axis) :	50 / 100 RPM
Max. Torque (X / Y / Z / B / C-axis) :	20 / 20 / 27 / 1830 / 571 Nm
Precision
Positioning Accuracy :	± 0.005 mm
Repeating Accuracy :	± 0.003 mm
Tool Changer
Tool Magazine Type :	Disc Type
Number of Tools :	24 Tools
Tool Size X Length (Max.)	Ø 80 - Ø 150 mm X 300 mm
Max. Tool Weight :	8 KGS
Tool Change Time :	2 seconds
Drive Capacity
Main Motor :	15 KW
Gross Weight :	11580 KGS
Packing Size :	4980 X 3410 X 3110 mm
Standard Accessory :	Siemens CNC Control System, 24-station Tool Changer, Rotating Table, Chip Conveyor, Lubrication System, Coolant system, Machine Lamp, Tools and Tool-box

High Precision CNC Machining Center for Demanding Users !

Our Advantages
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance. Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the MAXNOVO MACHINE. The Metal Scraper Craftsmanship is one of the most important techniques in machine tool industry. To make sure the surface perfectly flat
and smooth, we repeat check and scrap by hand with Time-Proven Unique Techniques that passed on to generations.
At MAXNOVO MACHINE, we strictly enforced that all our contact surfaces must be scrapped with at least 20 spots per square inch
and 40% of contact rate. This can guarantee the True Geometric Accuracy for our high precision machines . Casting is the core of machines, we underscores the importance of its development and production.
At MAXNOVO MACHINE, each casting piece passes various tests, such as high-pressure spray, annealing furnace,
and stress release to assure its stability. This can guarantee all customers with excellent quality of machine parts. The Excellent Quality is our dignity. At MAXNOVO MACHINE, our team is insisting on examining every single part of work-pieces
with strictly high quality standards. In order to fulfill the Large-scale manufacturing requirements in various machine tools, we invested a great deal of resources
and man power in innovating its manufacturing technology. At MAXNOVO MACHINE, the whole machining line is completed
in a temperature-controlled environment so as to maintain this outstanding quality and excellent accuracy. Intensively Production Since 2003 the MAXNOVO MACHINE produces a large part of its metal working machines in its own factory in Yangzhou in China.
There, the quality is controlled by the Germany Quality Management Representatives on-site. The final assembly and commissioning
of our MAXNOVO MACHINE products provide added value and allows perfect long-term working with the machine.
We never compromise on any materials validation and accurate quality control (IQC, IPQC, OQC) from start to finish.
From all the production material even a single resistor or a single cable, to hardware functions and sample test,we check
all the components and each possible performance of them. With every product we supply, we will make sure there is no mistake.
But due to some unavoidable reasons, if your purchase products from us are proven to be defective,we always
would take responsibility and take effective actions immediately for you.
FAQ :
1. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.

2. Question : What is the average delivery time ?
Answer : Most of the time, it would be around 2 month since after confirm receiving customers' contract money. For mass production purchase order at big quantity, the delivery time could be discussed with each other case by case.

---
