Light Culture Incubator

Product Details

Product Description

Product Description
Overview of use

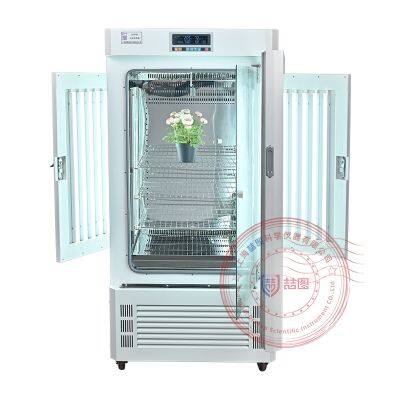

ZGC series light incubator is a high-precision constant temperature equipment with lighting function. It is suitable for plant breeding, the cultivation of bacterial mold and microorganisms, BOD determination of water analysis and other constant temperature test for other purposes. It is a special constant temperature culture device for the culture and breeding test of bacteria, mold and microorganisms.
Product characteristics
Microcomputer program control the temperature, illumination, can be with the light, to achieve different day and night setting; Large screen LCD instrument, 30 section programmable controller, multi-set of data display, to achieve unmanned automatic control and operation; Box bottom caster adopts universal wheel and independent fixed foot design, free and adjustable direction, and can be locked, easy to move. The four corners of the door process adopts angular semi-circular arc design, the case of high quality cold rolled plate, classic durable; The inner bladder is made of stainless steel, the shelf can be removed and adjusted arbitrarily, easy to clean and disinfect, leaving no dead corners; The observation window is made of compound door design, the inner door is made of tempered glass, and the outer door is made of magnetic door seal, with good heat insulation performance. Three modes are optional, fixed value mode, day and night mode, program mode, intelligent operation, worry and convenient; Using nickel-chromium alloy heater, can realize the temperature, illumination reservation scheduled operation or repeated step shift; It can simulate the temperature change of nature between day and night and the multi-directional light source, which can simulate natural light and promote plant growth. Adopt brand compressor, with self-monitoring and self-opening and closing control program, stable and reliable operation for a long time; Actively respond to the environmental protection refrigeration initiative, the use of fluorine-free environmental protection refrigerant, refrigeration power is controllable, intelligent and reliable; The tubular fan is used, and the internal air duct is optimized to improve the convection circulation form to ensure the fluidity and temperature uniformity of the air in the box. With parameter memory, call recovery and other functions, can ensure that the power failure, crash and other states of data is not lost; The temperature alarm point can be set according to the experiment needs, if the temperature exceeds the set temperature value, the equipment will automatically alarm; The modular refrigeration device is equipped with protection functions such as startup delay and shutdown interval, which can effectively extend the life of the compressor.
Light source color (standard with white cold light source) Red and blue light can be customized, red light promotes flowering and fruit, blue light promotes long leaves, and different light wavelengths according to different plants. Customized red light can promote plant growth, germination, flowering, fruit, promote plant photosynthesis, suitable for flowers and vegetables greenhouse light. Customized blue light can enhance the chloroplast activity, prevent plants from growing, suitable for succulent plants, stems and leaves, plant seedlings, dendrobium officinale, etc. Color Touch Screen (T-Series) The real-time curve interface can view the current temperature and illumination within nearly 1 hour, and the service life reminder function of the light source can be opened and closed at will; Unvariable light adjustment, when "the light is longer than the illumination alarm", the alarm can remind the experimental operator; It has the function of switching between Chinese and English and phased password login protection. It can set the time of three stages and the corresponding password, and the system is set near Time will remind the user that the service period will come, when reaching the set period after the system will prohibit all operations, display the password input interface, only lose Enter the correct password to continue to use.

model	ZGC-150-I Single surface light	ZGC-150-II Double-sided light	ZGC-250-I ZGC-250-II	ZGC-350-I ZGC-350-II	ZGC-150 ZGC-150T	ZGC-250 ZGC-250T	ZGC-300 ZGC-300T	ZGC-400 ZGC-400T	ZGC-800 ZGC-800T	ZGC-1000 ZGC-1000T
supply voltage	AC220V 50Hz				AC220V 50Hz
Temperature control range	There is light：10~65℃ No light：0~65℃				There is light：10~65℃ No light：0~65℃
Temperature fluctuation degree	±0.5℃				±0.5℃
temperature resolution	0.1℃				0.1℃
intensity of illumination	0~6000Lx	0~9000Lx	0~12000Lx	0~15000Lx	0~12000Lx	0~15000Lx	0~20000Lx	0~25000Lx	0~25000Lx	0~25000Lx
Light way	Type I is single-sided illumination (four-adjustable) Type II is double-sided illumination (six-level adjustable)				Three sides of illumination (six levels of adjustable) Customizable vertical exposure (partition fixed or adjustable)
interiorinput power	950W	1050W	1200W	1350W	1500W	1900W	2200W	2500W	3800W	4500W
Internal bile sizeWDH(mm)	480390 780	480390 780	580500 850	680550 950	500400 750	580500 850	580550 950	680550 1050	900850 1050	1050590 1650
outline dimensionWDH(mm)	605625 1375	605625 1375	705725 1555	805775 1640	700640 1480	780745 1560	780780 1660	880780 1810	105011501800	1410890 1950
nominal capacity	150L	150L	250L	350L	150L	250L	300L	400L	800L	1000L
The number of partition	2	2	2	3	3	3	3	3	3	3
Optional accessories	Test hole, independent temperature limit controller, RS485 interface, micro printer, color touch screen, optional full spectrum growth system
