Large Diameter Plastic HDPE Hollow Wall Profiled Spiral Wound Pipe Making Manholes Culvert Tanks Pipe Extrusion Manufacturing Facility Machinery Machine

Product Description

Large diameter HDPE Structural-wall spiral winding pipe extrusion production line.
Hollow wall spiral wound pipe extrusion line.
Weholite HDPE pipe production line.
HDPE structured-wall corrugated pipe manufacturing machinery.
HDPE Solid Wall spiral winding pipe extrusion lines manufacture.
HDPE inner Ribs reinforced spiral corrugated pipe extrusion lines.
Steel belt reinforced HDPE spiral pipe extrusion lines.
Polyethylene water tanks extrsuion line
Spiral pipes diameters: 200mm-5000mm, 200mm-6500mm
Spiral pipe Ring stiffness: SN1, SN2, SN4, SN6, SN8, SN10,SN12.5, SN16
Spiral winding corrugated pipes using applications:
- Sewage and drainage pipes
- Storm water drainage pipes
- Rain water sewage plastic pipes
- Cable protection casing pipes
- Civil construction pipeline
- Chemical storage tanks
- Water storage tanks
- Plastic septic tanks
- Liquid storage tanks
- Manhole wellbore, polyethylene manhles
- Inspection manholes
- Trenchless Pipe Rehabilitation
Part 1: HDPE large diameter hollow wall winding pipe production line
1. HDPE Large diameter winding pipe (diameter from 200mm-5 000mm) has high ring stiffness and high brunt intensity with "H" structure. It can be used for approximate 50 years and has many advantages such as low cost assembly and easy operation, with standing pressure, corrosion resistant such as acid, alkali and salt etc. It is becoming as a replacement of cement pipe and cast iron pipe nowadays. It is being widely used as sewage and drainage pipe.
2. HDPE large diameter hollow wall spiral winding pipe machine .
**The HDPE large diameter hollow wall winding pipe extrusion line is designed with advantaged technology and improved based on long time practice experience. Diameter range can be 200-4000mm.
**Our machine is featured with comfortable operation and high performance/price ratio.
**Due to our special design, it is very convenient in transportation and installment.
**We also developed energy saving method to save energy consumption in large diameter hollow wall winding pipe extrusion.
**By adopting two sets of high efficient extruders, the output capacity is big. Our winding pipe extrusion line can make pipe with ring stiffness 4, 8, 12, 16KN/m2. All parts precisely designed and manufactured so the whole extrusion line works stably and reliably.
**Special design for easy maintenance.
**The HDPE large diameter hollow wall winding pipe extrusion line is mainly used for producing large diameter hollow wall winding pipe.
3. Technical parameters:

Model

SMSG-800

SMSG-1200

SMSG-1600

SMSG-2400

SMSG-3000

SMSG-4000

Extruder

SJ-65

SJ-55

SJ-90

SJ-65

SJ-100

SJ-65

SJ-120

SJ-90

SJ-120

SJ-90

SJ-150

SJ-90

Output capacity

150kg/h

60 kg/h

300 kg/h

120 kg/h

400 kg/h

150 kg/h

400 kg/h

200 kg/h

600 kg/h

300 kg/h

800 kg/h

400 kg/h

Pipe diameter

200-800 mm

400-1200 mm

800-1600 mm

1200-2400 mm

2000-3000 mm

2400-4000mm

Production speed

2-16 m/h

2-12 m/h

1-6 m/h

0.5-5 m/h

0.3-3 m/h

0.1-2m/h

Installed Power

180 kw

250 kw

300 kw

400 kw

500 kw

600kw

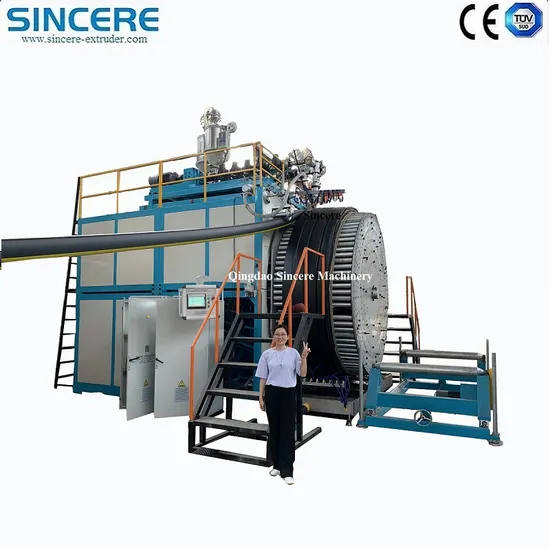

4. Hollow wall spiral wound pipe production line Pictures:
Part 2: HDPE Inner Ribs Reinforced spiral wound corrugated Pipe production line

1. HDPE Rib Reinforced Corrugated type Spiral Pipe production line is a kind of new generation high performance.
plastic spiral pipe line for large diameter buried drain pipe according to hollow wall winding pipe
production technology with the intellectual property. It can produce pipe size from Ø200~Ø5000mm
which is widely used in fields of civil water drain, wastewater drain.
2. The pipe could also be made by the recycled polyethylene material. These properties make it superior
advantages compared with other kinds of drainage pipe.
1) The investment is lower and the automatic control system is easy for operation and maintenance.
2) Adopt winding method by winding the semi-round two side circle profile
3) The inner PE-layer is Composited with the U-type pipe in melting condition. And they will never been
delaminated after spraying cooling forming, with good adhesion effect.
4)Adopting Electric-magnetic heating system which can save 40% to 60% electric power.
5)All Electric Part (breaker/motor/INCKO/Inverter) is Siemens/Omron
6)Production Speed is 1-20m/min.
7)Max. Pipe Size: 4000mm.
3. The features of PE Spiral Corrugated Pipes:
1) Light weight-per-meter
2) Belling link, tight cementation
3) Pressure against, high strength
4) Anti-frozen and long service life (50 years )
5) Convenient construction
4.Technical parameter of spiral corrugated pipe machine:

Model Pipe Dia.(mm) Extruder model Production speed m/h Max.out put kg/h Total power kw Overall dimension mm SMSG-800 200-800mm SJ-75 SJ-45 1-30 200 180 17000*8000*4000 SMSG-1600 600-1600mm SJ-90 SJ-65 1-20 500 220 20000*10000*4800 SMSG-2000 800-1200mm SJ-120 SJ-90 1-18 700 260 22000*12000*5000 SMSG-3000 1500-3000mm SJ-150 SJ-90 1-10 1000 310 25000*14000*5300 SMSG-4000 2000-4000mm SJ-150 SJ-100 0.5-7 2000 310 40000*14000*5300

Part 3. Solid wall winding pipe extrusion production line.
HDPE PP-H Storage tanks production machine
Solid wall spiral winding pipe extrusion line.
Spiral winding insulation jacket pipe production line.
Trenchless sinking wells jacking pulling pipe extrusion machine
The solid wall welded HDPE pipe, diameters from 200mm to 6500mm, wall thickness adjustable, the diameter changable automatical production can be reached
Solid-wall spiral winding pipes are widely using for Electric melting fusion pipe fittings, electrical cable protective conduit casing pipes, thermal pipe casing shells, trenchless sinking well jacking pulling pipes and so on.
Cosnists of the solid wall spiral wound pipe extrusion line:

Single-screw extruder for HDPE belt extrusion	1 sets or 2 sets
Extrusion T-die mould	1 set
Heating devices	1set
Air cooling devices	1set
Spiral wound machine	1set
Pressing rollers	1set
Cutting machine	1set
Stackers	1set

Electrial cabinet with Siemens PLC HMI touching screen

1set

Part 4. Steel belt Reinforced HDPE spiral winding pipe extrusion line
Steel belt straightening machine and heating device, steel belt is coated with polyethylene. Product has steel's rigidity and Anti-corrosion properties of plastics.
Consists of the steel belt reinforced composite hdpe spiral winding pipe production line:

1	Steel belts unwinder	1set
2	Steel belts Straightening machine	1set
3	Steel belt High frequency heating device
4	Steel belt welding machine	1set
5	Single screw extruder for HDPE melt extrusion	1set
6	Extrusion die moud for PE coating on the surface of steel belt	1set
7	Vacuum Calibrator	1set
8	Vacuumcalibration table	1set
9	2-claws Haul-off machine	1set
10	Single screw extruder for glue melt extrusion	1set
11	Spiral winding cages	1set
12	Cutting machine	1set
13	Stackers	1set
14	Electrical cabinet and electrical control system	1set

---
