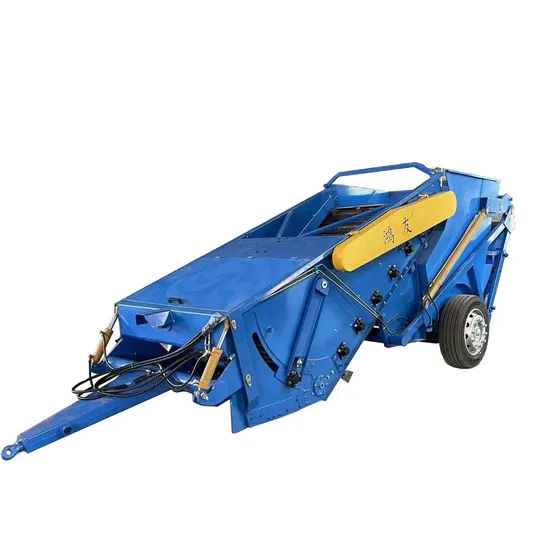

Automated Stone Picker Machinery for Agricultural Field Stone Clearing

Product Description

The main function: Through the three-point suspension of the tractor and the stone picker, the tractor drives the stone picker to work.
The digging knife goes into the soil to put up the crop and soil to be harvested and transported to the front chain row, and then runs into the roller of the back compensation.
The stone picker can solve the problem that the gravels in the soil inhibit the growth of crops. It can pick up and clean the stones in the field, facilitate farming, increase production and increase income.

Model	12JS-160
Working size	7000*2700*2800mm
Weight	4900kg
Working Width	1600mm
Supporting Power	>150HP

12JS-160 stone picker can improve work efficiency, solve agricultural technology problems, improve land efficiency, increase yield, improve land conditions, protect seedlings and increase agricultural efficiency. Supporting Power/ Machine Horsepower ≥150Hp,Matched To The Output Power Shaft Speed 540r/min Improve work efficiency: farmland stone picking machine has the characteristics of clean picking, high efficiency and low missed detection rate. The work efficiency is 6-10 times that of manual stone picking, effectively solving the problem of labor shortage and low efficiency in cooperatives.

Improve land efficiency: The operation of the stone picker can clean up the stones and weeds within 0-300mm below the surface, the conveyor chain gap (center distance) 50.8mm/63.5m, and the stones with a diameter of 28.8mm/41mm can be Collection Box 3.6m³ centrally recovered in the container which plays a positive role in improving land conditions, protecting seedlings and increasing production.
Company Profile
Dezhou Hongyou Agricultural Machinery Co., Ltd. was founded in 2002 with 22 years of processing history and manufacturing experience, focusing on underground root crops agricultural machinery products as the leading high-tech manufacturers. The company set agricultural machinery research and development, design, manufacturing, marketing, installation, and after-sales service in one of the introduction of international advanced laser cutting machine, CNC bending machine machinery production work to make machinery more safe, reliable, environmental protection characteristics, is the strength of Shandong Province agricultural machinery manufacturing enterprises, with modern office buildings, machinery production workshops, R & D workshops and test sites.
The annual output is up to 5000 units. The company's main products are: potato harvester, residual film recycling machine, field stone picker, ridge laminating machine, potato combine harvester five series of more than 50 varieties.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Delivery within seven days of deposit.

---
