| US$2,950.00 | 1 Piece (MOQ) |

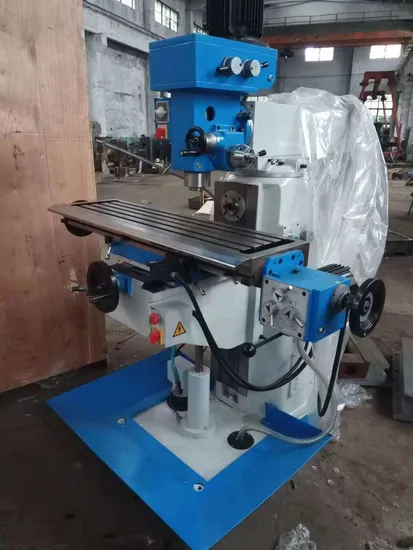

| MODEL | UNIT | ZX6350C |
| Spindle taper | M.T.4/ISO40/ISO30/R8 | |
| Distance vertical spindle to table | mm | 100-460 |
| Distance horizontal spindle to table | mm | 0-360 |
| Distance spindle to column | mm | 200-500 |
| Spindle seeds range | r/min | (8 steps)115-1750(vertical); (12 steps)40-1300(horizontal) |
| Automatic Feed Series sleeve | mm | 120(vertical) |
| Table size | mm | 1120×280 |
| Table travel | mm | 600/250/360 |
| Distance horizontal spindle to arm | mm | 175 |
| Table feeds range(x/y) | mm/min | 12-370(8 steps)(max.540) |
| T of table (no./width/distance) | mm | 3/14/63 |
| Main motor | kw | 0.85/1.5(vertical);2.2(horizontal) |
| Motor of table power feed | w | 370 |
| Coolant pump motor | w | 40 |
| N.W/G.W. | kg | 1250/1450 |
| Overall dimension | mm | 1660×1340×2130 |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
| 3-axis position indicator, 2 milling arbor (22, 27mm) ColletS set, drill chuck, mill chuck, Reduction sleeve, Work light, coolant. | DRO on X, Y, Z--AXIS Clamping kit Universal dividing head Rotary work table. |
