Double Wall Corrugated Pipe Plastic Corrugated Pipe Hole Making Machine

Product Description

Double wall corrugated pipe Plastic Corrugated Pipe Hole Making machine
Description of Double wall corrugated pipe Plastic Corrugated Pipe Hole Making machine
This corrugated pipe perforator machine is used to perforating holes on the Double wall plastic corrugated pipe. It have the characteristic of reasonable, high degree of automation, can be used both online and offline. The hole on the Double wall corrugated pipe are smooth, and without the residual.
Features of Double wall corrugated pipe Plastic Corrugated Pipe Hole Making machine:
Can be online automatic perforating on-line or off-line.
Perforating range: OD50mm~OD250mm;
The number of holes can be randomly selected from the 2 to the 8(need confirm the pipe size and location first);
Perforating number: Max 8;
Perforating size adjustable;
The use of fully enclosed design, safe and reliable;
It can perforate the corrugated pipes online for extrusion line.
The hole is cut into strips, and no dust pollution is easy to clean and recovery;
The holes is in Rectangle types, size from 12mm x 1.1mm - 30mm x 3mm; and can be distributed evenly within of 360 degrees, 270 degrees, 180 degrees, 90 degrees, etc.
Electronic control system: electrical components of the production line using SIEMENS, ABB and other international well-known brands of products.
Photos of Double wall corrugated pipe Plastic Corrugated Pipe Hole Making machine

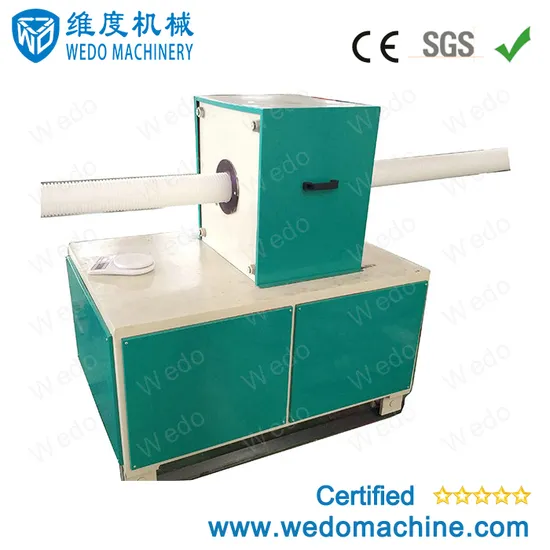

over view of Plasitc Single wall corrugated pipe perforator machine
online perforating of Double wall corrugated pipe Plastic Corrugated Pipe Hole Making machine
The perforated corrugated pipe get form Double wall corrugated pipe Plastic Corrugated Pipe Hole Making machine
The holes after handle by Double wall corrugated pipe Plastic Corrugated Pipe Hole Making machine
The perforated pipe get from Double wall corrugated pipe Plastic Corrugated Pipe Hole Making machine
We have three types of Double wall corrugated pipe Plastic Corrugated Pipe Hole Making machine: Pneumatic perforating type perforator machine. Mechanical perforating type perforator machine. Saw web perforating type perforator machine.
Processing Range and Model for reference of Double wall corrugated pipe Plastic Corrugated Pipe Hole Making machine

Model	Diameter(mm)	No. Of holes	Hole size	Type of perforator
WD-110	50mm-110mm	2,4,6	13mm x 1mm - 30mm x 3mm	Can both Online and Offline
WD-160	110mm-160mm	2,4,6,8
WD-250	160mm-250mm	2,4,6,8

About the perforated corrugated plastic pipe:
The perforated plasic pipe widely used in: Highway longitudinal, horizontal drainage and water permeability; A variety of highway retaining walls on the back and vertical ditches, horizontal drainage; Tunnel, underground drainage; Municipal engineering, water purification plant, sewage plant, landfill and other water supply and drainage; Golf courses, playgrounds, parks and other recreational green drainage; Slope development of slope soil and water conservation; Site preparation underground drainage; Arid land farmland groundwater collection, maintenance and utilization
Perforated plastic pipe performance characteristics:
Drainage safety: The orifice is located in the trough, due to the two-way interaction between the crest and the filter fabric, the orifice is not easily blocked, ensuring the water-permeable system is smooth.
Corrosion resistance: Compared with the soft spring drain, the plastic is not easy to rust.
Strength and flexibility of the organic combination: a unique double-corrugated structure effectively improve the strength of the product pressure, the drainage system will not be affected by external pressure and deformation of the drainage effect.
Economical: Compared with other drains with the same caliber, the selling price is lower.
Drainage effect is good: Plastic water storage tube to buy deep 0.5-1.0 meters, the general 50mm heavy rainfall, after the rain will not produce water. The smaller the spacing, the more rainfall is discharged and the stronger the soil water storage.
Survival rate of vegetation is high: in the greening lawn, the success rate of turf transplantation is over 98% and the greening time is prolonged accordingly. In the application of urban artificial forest, the concealed tube is erected around the root system to facilitate the water infiltration into the soil, Transplanting survival rate greatly improved.
Long-term benefits of an investment: underground pipe not only has the advantages of light weight, low cost, high mechanical strength, good flexibility, and construction convenience, can be arbitrarily constructed continuous underground pipe network, the service life of up to 30-50 years , Is an ideal underground engineering facilities.

Wedo Produce steps:Wedo have a fully step for the Double wall corrugated pipe Plastic Corrugated Pipe Hole Making machine producing before packing and shipping, this ensure the plastic recycling machine will delivery in good quality, and custerm will get good machine.Wedo service:We do best service for you in Double wall corrugated pipe Plastic Corrugated Pipe Hole Making machine Any further about the Double wall corrugated pipe Plastic Corrugated Pipe Hole Making machine, please contact us timely we will give your professional fully support.

---
