Basic Info.
Type
Worktable Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Certification
GS, CE, RoHS, ISO 9001
Product Name
X5036 Milling Machine
Spindle Taper
7: 24 Is050
Distance Between Spindle Nose and Table
60-540mm
Distance Between Spindle Hole Center and
325mm
Table Travel
700X320 (830X320)mm
Motor Power
4/0.75/1.1/0.09kw
Overall Dimensions(L*W*H)
1700*1600*1880mm
Net Weight/Gross Weight
2300kg
Transport Package
Fumigation-Free Wooden Box Packaging
Specification
1700*1600*1880mm
Packaging & Delivery
Package Size
1600.00cm * 1700.00cm * 1880.00cm
Package Gross Weight
2300.000kg
Product Description

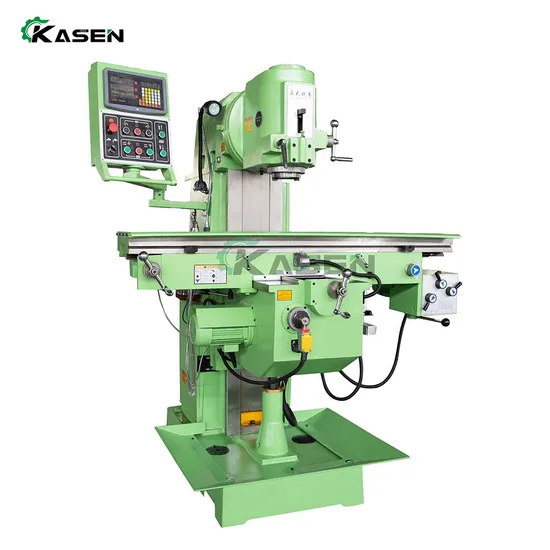

Universal Manual Large Milling Machine X5036 China Knee Type Vertical Milling Machine
Product Description
The main performance characteristics: 1. The use of the moment type of rail steel is good, strong stability 2. High frequency quenching of working table and guide surface 3. Working table Y, X are both gear drive automatic feed, Z for electric lift 4. X5036B - type slider (1200mm) to make the work of the working table longer, better stability 5. B type milling head with automatic feed device can be customized according to user requirements of the X direction of the work table 1300mm
Specification
Specifications
| Units
| X5036B
| X5036B-1
|
Spindle taper
|
| 7: 24 IS050
| 7: 24 IS050
|
Distance between spindle nose and table
| mm
| 60-540
| 60-540
|
Distance between spindle hole center and column surface
| mm
| 325
| 325
|
Spindle speed
| rpm
| (12steps)60-1700
| (12steps)60-1700
|
Table size
| mm
| 1370x360
| 1500x360
|
Table travel
| mm
| 700x320 (830x320)
| 1000x320
|
Motor power
| kw
| 4/0.75/1.1/0.09
| 4/0.75/1.1/0.09
|
Overall dimensions(L*W*H)
| mm
| 1700x 1680 x 1880
| 1900x 1680 x 1880
|
Net weight/Gross weight
| kg
| 2200/2300
| 2300/2400
|
After Sales Service
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.
1.Warranty The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual. 2.Quick Response Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most. 3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions. 4.Overseas Commissioning and Installation This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian
>>
