Product Description

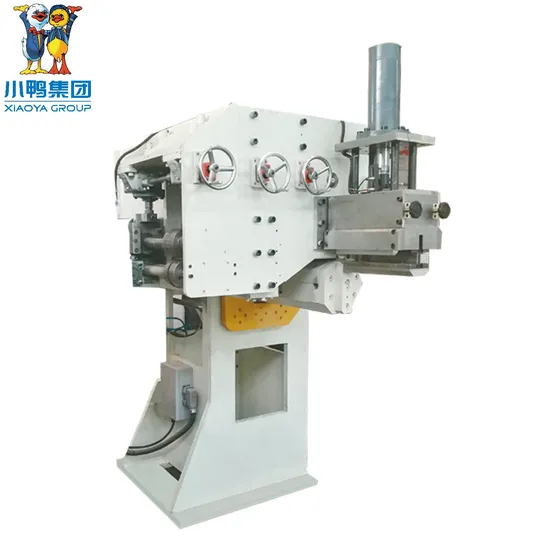

Coiling machine
The purpose of this machine is to form hoops from flat strips. The end products are formed into light and heavy truck rims. The machine can be either manually fed by an operator or automatically fed using an automatic blank preparation system. After coiling the bands are automatically ejected into a short exit chute.
The coiled hoops feature a short circumferential flat on both sides of the gap permitting the use of flat welder and weld trimmer tooling, while at the same time providing minimal out-of-roundness of the coiled hoopsAs a major wheel rim machinery manufacturer, we supply a variety of equipment, including the coiler machine for the wheel rim production line. This rim machine set consists of the feeder, deburrer, stamper and coiler.

Application		passenger car	truck	Agricultural vehicle
rim diameter range		13inch to 18inch	17.5inch to 26inch	20inch to 54inch
rim band thickness		≤4mm	≤8mm	≤8mm
rim band width		3inch to 10inch	5.5inch to 16inch	7inch to 28inch
main machine spec	feeder	available	available	available
	deburrer	JMC-100	JMC-100	JMC-100
	stamper	DZJ-120	DZJ-120	DZJ-120
	coiler	QYJ-600	QYJ-800	QYJ-1500
input power	deburrer power	4kw	5.5kw	5.5kw
	coiler power	7.5kw	11kw	11kw
	input total power	11.5kw	16.5kw	16.5kw
coiling roller diameter		155mm	165mm	175mm
coiling roller speed		88r/min	63r/min	63r/min
power supply		AC380V/3phase/50Hz,Can be customized

Main features1. The rim equipment has a horizontal structure, chain transmission, and hand wheel for adjustment. This ensures the easy operation and maintenance.2. The stamping head on the stamper can be quickly changed according to different needs.3. The discharge end can be designed with an automatic discharging platform that is conducive to the automatic transportation of the work piece.4. The wheel rim coiler machine features an integrated design, that melds deburring, stamping and coiling into one machine, saving labor and floor space.5. The main shaft is engineered from the NSK brand high performance bearing, ensuring the long service life.6. The horizontal coiler machine uses an electrical control system from famous brand, making it safe and reliable.7. The coiler used in the small wheel rim line is able to flatten the welding joint. After it has been formed into a coil, the work piece can be directly conveyed to the butt welding process.8. The coiler can provide automatically and manually feeding function based on customer demand. Contact us immediately for the most preferential price
Best wishes!

---
