US$16.10
1,470-4,409 Pieces
US$16.05
4,410-7,349 Pieces
Basic Info.
Pressure
1.6MPa≤p<10.0MPa
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Product Name
DOT CE ISO4706 12kg 25lbs LPG Cylinder Propan
Water Capacity
26.2 Liters
Max Filling Quality
12.5kg
Cylinder Body Dimension
Diameter 300mm, Nominal Thickness 2.75mm, Height 4
Shield Dimension
Diameter 230mm, Height 145mm, Thickness 2.3mm
Base Ring Dimension
Diameter 303mm, Height 65mm, Thickness 2.3mm
Standard
ISO4706, En1442 or Others
Ambient Temperature
-40 to 60 Deg.C
Service/Test Pressure
17/34 Bars
Transport Package
40hq Container
Specification
LPG Cylinder
Production Capacity
7000PCS/Day
Product Description

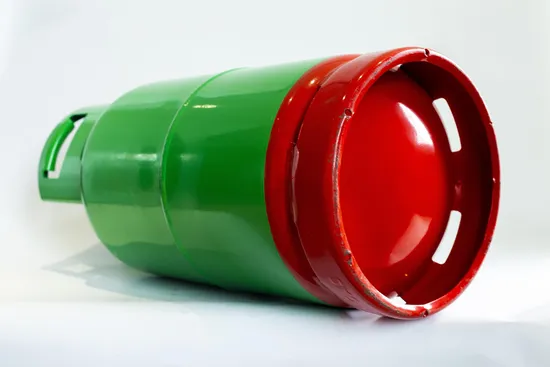

Daly DOT CE ISO4706 12KG 25LBS LPG Cylinder Propane Bottle
Standard
| ISO4706, ISO9001:2008, CE,NIS 69, DOT 4BA, PNS 03-1, AS 2469.....
|
Material
| HP295 hot rolled steel
|
Test Pressure
| 30Bar
|
Work Pressure
| 18Bar,
|
Blasting Pressure
| 60Bar
|
Wall Thickness
| ≥2.5mm
|
Tare weight
| 13.5kgs
|
Valve
| Optional
|
Relevant Products
| Low pressure regulator, PVC hose, gas stove, Cast iron stove
|
LPG-12.5KG
|
Water Capacity
| High total(mm)
| BOTTLE
| GUARDED
| BASE
|
In diameter (mm)
| High
| Outside diameter(mm)
| High
| Outside diameter(mm)
| High
|
26.5L
| 590
| φ294
| 470
| 222
| 145
| φ303
| 68
|
Daly, one of the largest LPG Cylinders in China, was founded in 1981. Daly is the Deputy Director Unit of The China Gas Association involved in the formulation and modification of Chinese National Standard in LPG industry. Today Daly is able to produce over 5 million cylinders yearly and has with excellent reputation for LPG cylinders and export the products to Europe, Africa, Southeast Asia, South America and etc. Our products cover the whole range of LPG cylinders, range from 3kg, 5kg, 6kg, 10kg, 12.5kg to 60kg and comply with different standards, like ISO4706/EN1442/GB5842/DOT4BA and etc.
Exhibition
Hubei Daly LPG Cylinder manufacturer, we are NO 3 LPG Cylinder manufacturer in China.
Our product is in millions Chinese family which is safe and strong. In China,
only few manufacturers have the permit to make the LPG Cylinder, we are one of them.
OUR FAQ
Question 1. How to ensure your cylinders quality?
A: Our factory was founded in 1981, we have ISO9001, BV, CE, and approved by the Administration of quality of supervision, Inspection and Quarantine (AQSIQ) of China. Dali is an appointed manufacturer of LPG cylinders and pressure vessels. Moreover, Dali is a deputy director's unit of the China Association-Professional Committee of Chinese LPG cylinders.
We have 9 pressure vessel production lines, which are of the most advanced technology in the industry and furnished with early 400 machinery and equipment (including advanced x-ray real-time Image Inspection System, Spectrum Analyzer, and other inspection equipment).
Question 2 What's your production capacity?
A: We have 9 production lines, in full production capacity, we can supply 5 million cylinders annually / 400,000 cylinders per month.
Question 3. What's Daly Main Sales Products?
A: We mainly supply LPG cylinder, valve and other parts of cylinder.
Question 4. How about the sample?
A: In our acceptable range, we can offer a sample by charging freight, and we will return the fee to your after you make an order.
Question 5. How about the payment and delivery time?
A: The payment term: 30% for deposit, balance copy of BL; L/C at sight.
Question 6. How do you make our long-term business and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers' benefit.
2. We will have professional engineers and advanced production equipment, will offer you as much support as we can to help you occupy more market.
>>
