Anon Tractor Best Farm Culivator Rotatry Mini Power Tiller

US$2,300.00-2,800.00 1 Set (MOQ)

Basic Info.

Model NO.

AN1GQN-160

Farming Policy

Dry Cultivating Machinery

Power Source

Tractor

Operation

Soil Preparation Machinery, Continuous Running Operation

Traction Type

Traction

Drive Type

Chain Drive

Arbor Configuration

Vertical Shaft

Certification

ECE, EU, CE

Color

Red

Warranty

1year

Model

1gqn-160

Matched;Power

30-40HP

Working Depth

12-16cm

Working Width

160cm

Linkage

Standard Three-Point Mounted

Number of Knives

38PCS

Transport Package

Plywood Box

Specification

900*1700*1000mm

Trademark

ANON

Origin

China

Production Capacity

5000sets/Year

Packaging & Delivery

Package Size

900.00cm * 1700.00cm * 1000.00cm

Package Gross Weight

200.000kg

Product Description

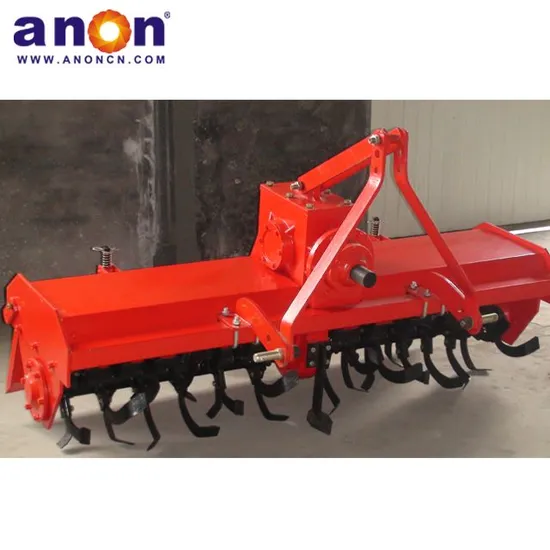

Anon Tractor Best Farm Culivator Rotatry Mini Power Tiller
Product Description
1GQN series tractor rotary tiller is adopted middle gear transmission system, mounted with the tractor by the 3 point suspension. Tractor's wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. This cultivator can be used on dry and paddy field.
1. This mounted rotary tiller covers the tractor wheel track perfectly.
2. The rotary cultivator saves labor and reduces the cost.
3. It is a tractor mounted rotary tiller for 18-80hp tractor.
4. The blade is 65Mn/60Si2Mn steel .
Product Parameters
Anon Tractor Best Farm Culivator Rotatry Mini Power Tiller

Model		AN1GQN-100	AN1GQN-125	AN1GQN-140	AN1GQN-150	AN1GQN-160
Matched power (hp)		12-15	18-20	20-25	25-30	30-40
Working width(cm)		100	125	140	150	160
NO. of knife		22	26	30	34	38
Type of knife		IT225
Total weight(kg)		192/200	210/220	220/230	230/240	240/251
O.D.(mm)(L)(W)(H)		8501050950	90014501000	90016001000	90017401000	90018801000
working depth(cm)	dry land	8-14		12-18
	paddy field	10-16		14-20
Export axle rotary speed(r/min)		530-730
Knife axle rotary speed (r/min)		180-250
Walking speed (km/h)		1-4
Rate of working depth(%)		≥85
Soil level after worked (cm)		≤5
Vegetation covered rate(%)		≥55
The rate of crushed soil(%)		≥50
Linkage		Standard three-point mounted

Detailed Photos

Anon Tractor Best Farm Culivator Rotatry Mini Power Tiller
