High Speed Spray Head for Fire Fighting Equipment

Product Description

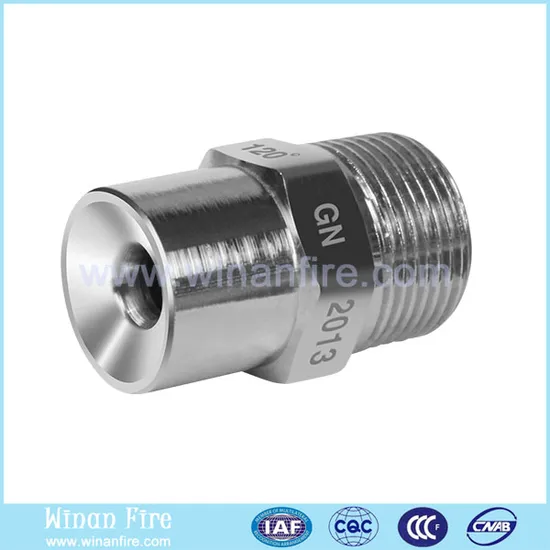

High Speed Spray Head Sprinkler Head
It is the high speed spray head that constitutes the sprinkler system along with water supply pipeline, control valves and announciator to put out fire on electrical equipment and flammable liquid. It is widely used in large transformer, oil tank, shopping mall and warehouse.
Working Principle:
The ZSTD series high speed water mist nozzle consists of helical core and nozzle frame. It is the significant unit in the sprinkler system. It will explode water into vaporific droplets by the influence of pressurized water and eject at a certain velocity.
Technical parameters:

Connection Size	Working Pressure (MPa)	Flow Range (L/min)	Atomizing Angle	K Factor
DN15	0.35	15~70	60° 90° 120°	8~40
DN20		70~150		40~80
DN25		150~300		150~300

Notes: we make available customized design for our clients
Package:
Exhibition:
The project we finished :
FAQ 1. What is your product range?
We have manufactured the foam system, sprinkler system, fire monitors, fire hydrant, water mist system and valves since 1995.
2. What is your usual payment term?
We accept T/T, L/C and Western Union.
3. How long is the delivery time?
Shipped in 15 days after payment.
4. Do you have technical support?
Yes, we have a professional engineering team.
5. Do you have warranty?
Yes, all products have one year warranty.
6. Can you accept OEM?
Yes, we can do as our customer's requirement.

---
