Carding Machine

Product Description

Product Description

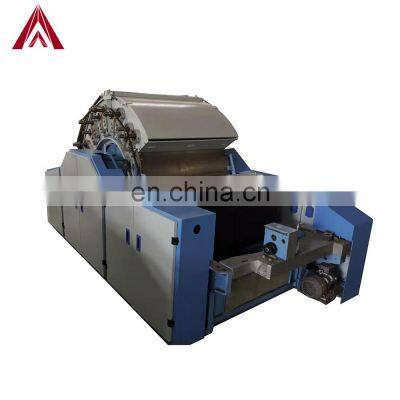

Product DescriptionAT202L Carding MachineAT202L Carding Machine is used to open and card cotton, linen or chemical fibers. It repeatedly cards the curly and disordered loose fibers through metal carding needles to be parallel as well as full drafting and removal of trash. It produces sliver of specific weight and length for next drawing process. It is the part of yarn spinning system includes the opener, the carding machine, drawing frame, roving frame and ring spinning machine. SpecificationModelAT202LMachine typeRight-handMachine width1020mmOutput capacity(20~55)kg/hCylinder diameter1289.2mmCylinder rotation speed179.3r/minDoffer diameter707mmDoffer rotation speedFrequency controlApplicable fiber length22~150mmDrafting ratio52.5~93.7Main motor power4KWDoffer motor power1.1KWPower supplyAC380V 50Hz, three-phaseDimensions4450×1930×1200mm(L×W×H)WeightApprox. 5000kgDetails and Features★ Imported Specimen mounting tube and corkliner★ Corkliner adopt demountable design, it’s easy to replace★ Digital Counter display, it’s convenient to operateOur CompanyPacking&DeliveryPackageWeight35Kg Packaging Details1. The equipment is covered with film is protect it from water vapour during the trip.2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.PaymentPayment Term T/TEXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdDelivery Time7~10days after receiving payment for one containerContecting Us

---
