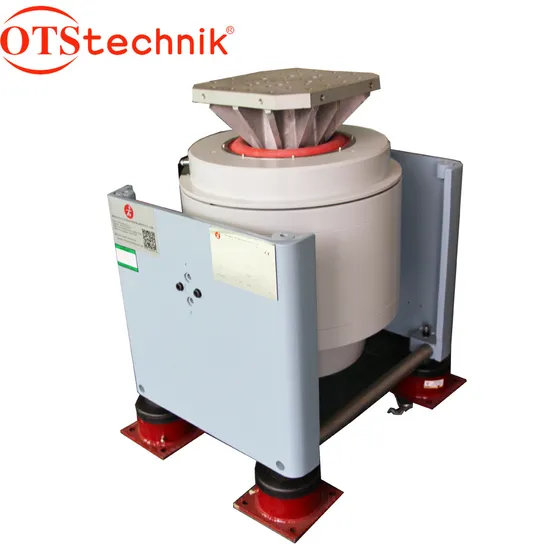

Dongguan Factory Machine Electrodymatic Type High Frequency Vibration Test Cabinet

Product Description

Electromagnetic three axis vibration test machine high frequency vibration testing equipment
Model: XB-OTS-DC500

Description & Application
High Frequency Electromagnetic Vibration Test Machine / (Electromagnetic Vibration Test Equipment) is used to educational, research, and laboratory environments. Adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
Specification
Laboratory testing equipment 3-axis electrodynamic vibrator tester High frequency dynamic vibration test machine

Brand	OTS
Type	Circular
Transmission Structure	Electromagnetic Shaker
Works	Electrodynamic Vibration
Axis	3 Axis
Frequency range	5-2000Hz
Amplitude	10-16hz+-10mm
Sweep rate	1 octave/min
Number of axes	3(X-Y-Z)
Duration	90 min 2 cycles per axis
Supporting Device	Coil Spring
Customized	Customized
Rated Sine Force (N)	1000 to 3500000
Frequency Range (Hz)	3 to 3500
Rated Velocity(M/S)	1.2 to 1.8
Function	High Frequency Vibrating Screen
Usage	Experiments Shaker
Object	Electronic Parts
Running Track	Circular Vibrating Screen
Condition	New
Rated Random Force (N)	1000 to 3500000
Rated Acceleration(M/S2)	400 to 1000
Rated Displacement (P-P, mm)	25 to 91
Power	AC380V ,3 pH 3 Lines
Warranty	1 Year
Certificate	CE

Mechanical and Vibration Laboratory Test Equipment feature:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.

Composition of High Frequency Electromagnetic Vibration Test Machine
Vibration test bench, power amplify, cooling fan,Slip table,vertical expander
Horizontal Stand features:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.
Vertical Extended-bench features:
VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect
Advantage Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE Customer Support Services Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Related Products
Company Profile
Dongguan Xinbao Instrument Co., Ltd, with its own brand--OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978. It owns sophisticated and advanced technology in producing environmental test chambers and mechanical test machines like temp humidity chamber, thermal shock test chambers, rain and dust test chambers, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test chambers and so on. Products made by OTS reach international standards: ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, IEC. Also they are widely used in different area: R&D Institutions, Quality inspection institutions, universities,electronics, communications, instrumentation, automobile, plastic, metal, building materials, aviation, etc.
Manufacturing Technique Customer Photos Now OTS has its main production base in Dongguan, a branch in Suzhou and offices in South Asia, Europe, USA. OTS also owns an independent laboratory which exhibits all currently produced machines under CNAS calibration, so customers can check the function and quality immediately. Equipped with over 30 workers in a metal plate department, OTS is capable to produce customized shells; What's more, OTS has enough stock to satisfy customers need in time. In the meanwhile, every machine must be examined for 3~days before shipment and with lifetime maintenance service. Certifications Packing&Shiping FAQ 1.Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2.What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3.Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
4.How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
