Electric Suspension Bus and Truck Pit Lift

US$2,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

DXJ

Capacity (Load)

11-20T

Power Source

Electric

Max Height

>400mm

Certification

ISO 9001:2008

Condition

New

Max Lifting Tons

15t

Max Working Stroke

630mm

Using Way

Pit Use

Transport Package

Export Plywood Case

Specification

ISO9001

Trademark

Haolida

Origin

Shandong, China

HS Code

8425429000

Production Capacity

200sets Per Year

Product Description

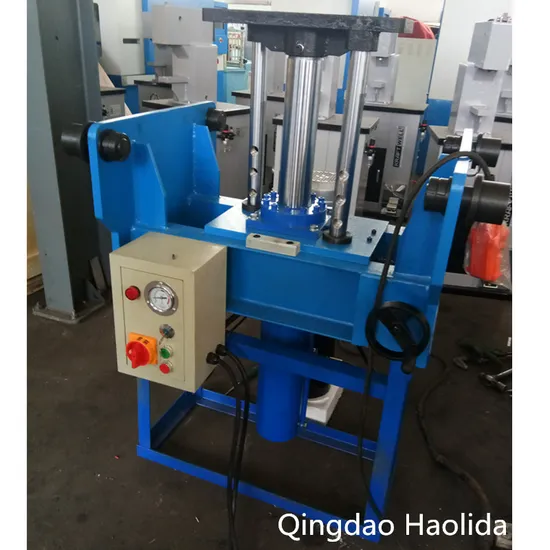

Electric suspension pit lift
1.Function Introduction
Hydraulic drive and stable lift;
Insured pin;
With quick falling handle;
Longitudinally move the cushion for positioning; Lateral movement with manual locking positioning;
Equipped with all special brackets according to the requirements of users;
2. Technical Parameter
Maximum lifting weight:150KN
Maximum lifting height: 800mm
Minimum height (away from the surface of guide ways): 170mm
Working stroke: 630mm
Applicable clearance (Inner distance of guide ways): 950~1050mm
