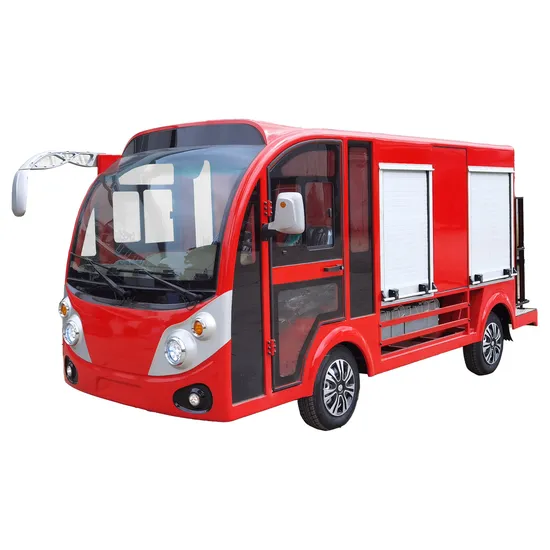

Water Tank Fire Fighting Truck Mini Fire Rescue Fighting Equipment Special Truck

Product Description

Product Parameters

2 oil fire engines (800L tank) - Legendary model
Technical parameters	Length * width * height (mm)	4770 * 1610 * 2050
	Rated crew(people)	2
	Maximum travel speed km/h	≤27km/h
	Driving range (km)	60-80 (level road)
	Safe climb	15%
	Minimum turning radius (m)	7.3 m
	Minimum ground clearance (no load/full load)mm	140/130
	Wheelbase	2300 mm
	Wheel gauge	Front 1350/ rear 1290mm
	Braking distance(no load/fullload)M	3.1/5.0
Drive parts	Engine	4A13 electric injection engine
	Tank capacity (L)	55
	Displacement	1.3 Emission standard Country 5
	Gearbox	Five-speed shift
	Front and rear suspension	McPherson type independent suspension, leaf spring type non-independent suspension + cylinder type hydraulic shock absorbers
	Rear axle	The only automotive-grade fully floating rear axle with a rear axle speed ratio of 12.43
	Transmission technology	Industry automotive drive shaft technology
Body configuration	Front stop	Laminated glass
	Seats	Leather fabric
	Rearview mirror	One manual external rearview mirror on each side
	Top canopy	Automotive professional environmental protection thermal insulation aluminum-plastic panel
	Flooring	Aluminum alloy patterned non-slip flooring
	Steering system	Two-way rack and pinion steering system, automatic gap compensation function, electronic direction assist
	DC, light and signal	72V/12V-400W front lights, turn signals, rear taillights, horns, reverse buzzers, fire special alarm lights
	Bodywork	Automotive craft sheet metal body
	Tank capacity (L)	800(stainless steel tank, internal release board)
	Rolling shutter door	Pull shutter doors
	Fire pump	Fuel oil fire pump
	Frame	Shot blasting for rust removal, phosphating pickling, cathodic electrophoresis, spraying automotive top paint
	Instrument desk	Instrument table for injection car, voltmeter, electric meter, indicator light,electric lock switch, combination switch, speed meter.
	Braking System	Front disc rear hub four-wheel hydraulic brake + handbrake parking,hydraulic vacuum brake power
	Front axle and suspension	Independent suspension, coil spring + cylinder type hydraulic shock absorption
	Rear axle and suspension	Integral rear axle, cylinder type hydraulic shock absorption
	Tire diameter	185R13

On-board fire fighting equipment
Categories	Quantity
800L stainless steel tank	1
Water cannon	1
Fog Cannon Machine	1
4kg dry powder fire extinguisher	2
Fire hose (25m)	2 rolls
Fire shovel	1 handful
Fire axe	1
Fire hydrant wrench	1
Fire bucket	1
Dc switching water gun	A handful
Flowering water gun	1 set
Type 92 fire suit	1 set
Fire helmet	1
Fire belt	1
Fire stab-proof boots	1 pair
Fire pump	1

Product Description
Detailed Photos Equipped with a high-pressure water pump, this Water Tank Fire Fighting Truck Mini Fire Rescue Fighting Equipment Special Truck With Good Quality provides powerful force for firefighting purposes. Increase the capacity of the water tank to enhance convenience and usability. Our Water Tank Fire Fighting Truck, also known as a Mini Fire Rescue Fighting Equipment Special Truck With Good Quality, is designed to provide a comfortable driving experience with its soft leather seats.The carriage is equipped with high-quality roller shutter doors, making it more convenient to use. Wide range of application
Real PICS
Certifications
After Sales Servicequality guarantee
1.Our company guarantees that the supplied vehicles are brand new, unused original qualified products, and ensure that the provided vehicles have good performance during their service life under normal maintenance conditions of correct installation and normal use.
2.Our company is committed to the quality standards of the supplied vehicles in accordance with the relevant national quality and technical standards and relevant laws and regulations and provisions of the implementation of the requirements, and not lower than the original manufacturer's quality assurance regulations and relevant supply standards for the supply of counterfeit and shoddy products.
after-sales service
1.Promise to provide permanent maintenance services, vehicle warranty for one year, after the warranty period to provide paid services.
2.Regular return visit maintenance: Telephone return visit every 3 months, timely understanding of the buyer's opinions and suggestions, in order to promote the company's after-sales service work to further improve.
After-sales proces
1.The customer provides product information, unit information and contact information by telephone or email message, and describes the cause of the problem to the manufacturer.
2.After receiving the information, the manufacturer will try to deal with it as soon as possible.
3.Provide a solution to the problem described by the customer until the customer is satisfied.
Company Profile
Workshop pictures
FAQQ1 Are you factory or trading company?
A:We are factory in Guizhou province,China,with more than 10 years of manufacturing experience
Q2 Do you support customized products?
A:We offer a wide range of customized products, which can be customized according to your requirements
Q3 How long is your production cycle?
A:Production cycle 30 days in peak season, 10-15 days in off-season
Q4 How about the trading term and payment term?
A:We can discuss this individually

---
